Product Details:
Payment & Shipping Terms:
|
| Automatic Grade: | Fully-automatic | Warranty: | One Year For Free |
|---|---|---|---|
| Capacity: | 6000BPH(500ml) | Control System: | PLC+Touch Screen |
| Color: | Silver Gray | Power: | 6.68KW |
| Machine Material: | Stainless Steel 304 | Filling Type: | Normal Pressure Filling |
| High Light: | fruit juice production line,small scale juice bottling equipment |
||
Specifications:
1. glass bottle filling machine
2. Washing filling capping 3-in-1 unit
3. Normal pressure
Products Introduction:

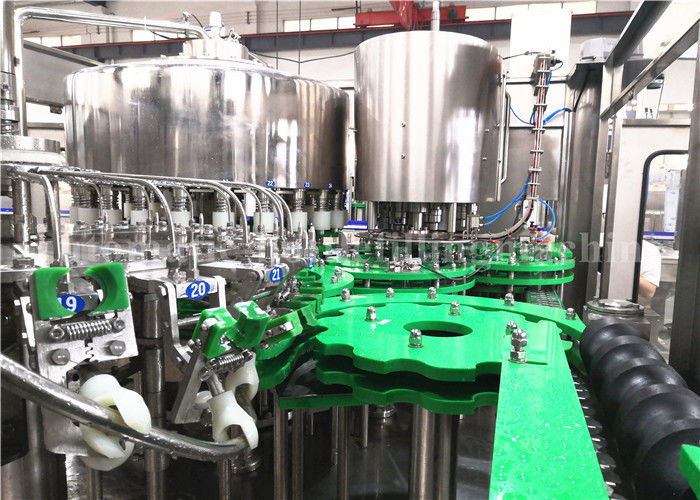

This CGF Wash-fillingcapping 3in1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
You can click the below picture to see the video
https://youtu.be/w5AvcLVx32A
Technique parameter
| Model | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 |
| Productivity | 2000BPH | 4000BPH | 6000BPH | 10000BPH |
| Rinsing Head | 8 | 16 | 18 | 24 |
| Filling Head | 8 | 12 | 18 | 24 |
| Capping Head | 3 | 6 | 6 | 8 |
| Bottle Volume | 350ml~2000ml±10ml | |||
| Bottle Diameter | φ50-92mm | |||
| Bottle Height | 150-310 mm | |||
| Filling Tolerance | ±2% | |||
| Cap Size | 28mm and 30mm PE Standard Caps | |||
| Air Pressure | 0.6MPa | |||
| Air Consumption | 500 L/min | |||
| Filling Water Consumption | 1.5 m3/h | 1.5 m3/h | 3 m3/h | 6 m3/h |
| Rinsing Water Consumption | 0.5 m3/h | 0.5 m3/h | 1 m3/h | 2 m3/h |
| Motor Power | 4.88kw | 5.88kW | 6.68kW | 7.68kW |
| Voltage | 380V | |||
| Dimension |
(L*W*H) 2100*1500*2200mm |
(L*W*H) 2100*1500*2200mm |
(L×W×H) 2450*1800*2200mm | (L×W×H) 2750*2180*2200mm |
| Weight | 2000kg | 2500kg | 3000kg | 5300kg |
| Filling Principle | Gravity Filling | |||
Juice Rinsing Part
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Juice Filling part
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Juice Capping part
-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
