Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant

Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant
Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant

Large Image :  Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: pls inquiry
Packaging Details: standard wooden case
Delivery Time: 45 days
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Water Filling Machine Function: Rinsing Filling Capping
Filling Material: Drinking Water, Mineral Water, Still Beverage Suitable Bottle: 3-7 Liter
Speed: 3000BPH Model: CGF16-16-5
High Light:

mineral water filling machine

,

automatic water filling machine



Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant



As a manufacturer we can provide complete line equipments for water production, including the RO water treatment, filling machine, labeling machine, wrapping machine, carton packing machine, code printer etc. Our products have a big, from 400 bottles per hour to 30000BPH, suitable bottle from 3-10 liter, different bottle can work in one machine only need to change some changeovers.



Filling machine character:

Washing part

  1. 1. Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
  2. 2. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
  3. 3. The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
  4. 4. The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.

Filling System

1) Adopted Germany igus anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.

2) The rotate plate is made of SUS AISI304, large flat toothed bearing.

3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 316L stainless steel.

4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the juice pipe, liquid tank and filling valve etc. effectively.



Capping System

1) The screwing capping head is dual-purpose design; it is suitable for flat cap.

2) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.

3) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

4) A bottle inlet detect switch is settled on the screwing capper.

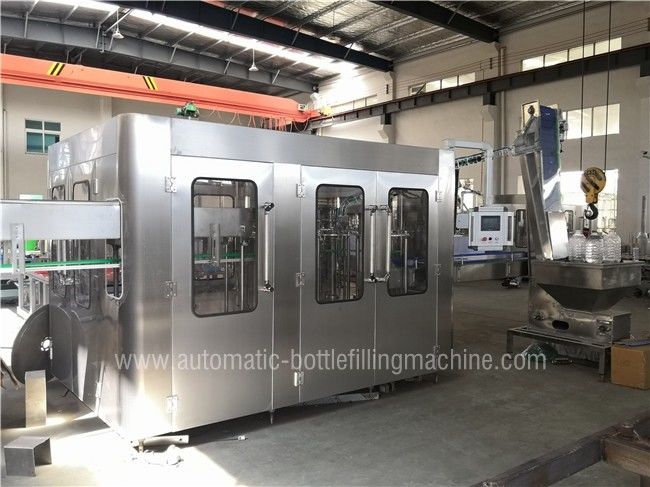

Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant 0



Rotary Liquid Bottle Filling Machine , Fully Automatic Mineral Water Plant 1



Small bottle 300-2000ml filling machine technical parameter:




Model
CGF16126
CGF18186
CGF24248
CGF32328
CGF404010
CGF505012
CGF606015
Heads
of washing
,filling ,
sealing
16-12-6
18-18-6
24-24-8
32-32-8
40-40-10
50-50-12
60-60-15
Production
capacity
(bottle/hour)
2000-4000
5000-7000
8000-12000
12000-15000
16000-20000
20000-24000
25000-30000
Suitable bottle diameter(mm)
φ=50-100 H=170 330-1500ml
Spraying pressure
2~3
Motor power Main
motor
1.5kw
Main motor
2.2kw
Main motor
3kw
Main motor
4kw
Main motor
7.5kw
Main motor
9.5kw
Main motor
12kw
Power of
outer
vacuum
pump
0.75
1.1
1.5
2.2
2.2
3
4
overall dimension
(LxWxH)
2100x
1400x
2500
2460x
1720x
2650
3100x
2100x
2650
3500x
2500x
2650
4600x
1800x
2650
5200x
4500x
3400
6500x
4500x
3400
Weight 2500
3500
4200
5500
6800
7600
9800



If you want to know more about machinery and equipment, welcome to contact!
