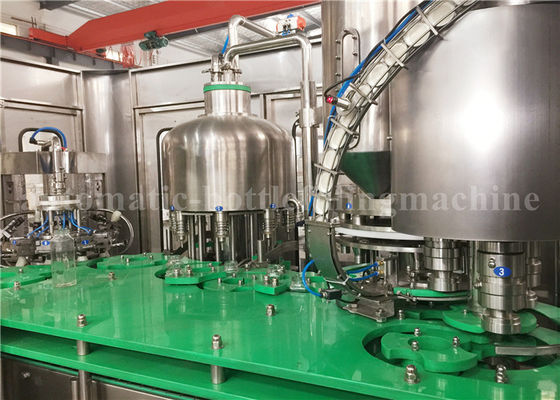

Rotary Orange Juice Bottle Filling Machine / Fruit Juice Filling Line 380V / 50Hz

Rotary Orange Juice Bottle Filling Machine / Fruit Juice Filling Line 380V / 50Hz
Rotary Orange Juice Bottle Filling Machine / Fruit Juice Filling Line 380V / 50Hz

Large Image :  Rotary Orange Juice Bottle Filling Machine / Fruit Juice Filling Line 380V / 50Hz

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Overall Dimension: 2100*1500*2200mm
Warranty: One Year For Free Capacity: 2000BPH(500ml)
Control System: PLC+Touch Screen Color: Silver Gray
Power: 4.23KW Weight: 2000kg
High Light:

fruit juice production line

,

small scale juice bottling equipment

Rotary Orange Juice Bottle Filling Machine / Fruit Juice Bottling Packaging Plant 380V/50Hz





Technique parameter

Model CGF8-8-3 CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 2000BPH 4000BPH 6000BPH 10000BPH
Rinsing Head 8 16 18 24
Filling Head 8 12 18 24
Capping Head 3 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 4.88kw 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

(L*W*H)

2100*1500*2200mm

(L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2000kg 2500kg 3000kg 5300kg
Filling Principle Gravity Filling





CGF series rinsing filling capping 3in1 machine

Juice Rinsing Machine:

-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.



Juice Filling machine:

-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.



Juice Capping machine:

-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam.



Features

1) Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.

2) Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.

3) Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling. 4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.

4) Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.







https://www.youtube.com/watch?v=6hucff2X4Nc&feature=share
