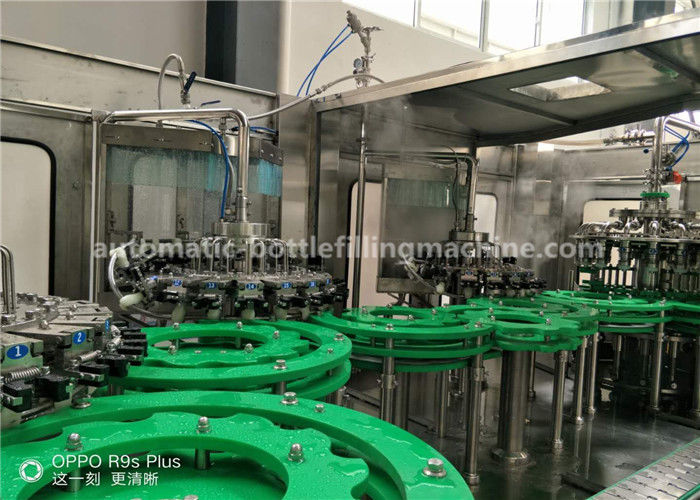

Fruit Juice Making Machine , Flavour Water Hot Filling Bottling Plant

Fruit Juice Making Machine , Flavour Water Hot Filling Bottling Plant
Fruit Juice Making Machine , Flavour Water Hot Filling Bottling Plant

Large Image :  Fruit Juice Making Machine , Flavour Water Hot Filling Bottling Plant

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-18-18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Bottle Volumn: 200-2000ml
Automatic Grade: Fully-automatic Weight: 6000kg
Dimension: 2950*1800*2200mm Machiner Material: Stainless Steel 304
Filling Temperature: Hot Filling Capacity: 2000-3000BPH(500ML)
High Light:

fruit juice production line

,

small scale juice bottling equipment

Fruit Juice Making Machine , Flavour Water Hot Filling Bottling Plant



Specific information
1. This 5-in-1 unit machine is suitable for glass bottle
2. Capacity:2000-3000 bottles per hour
3. Hot filling machine with back-flow system
4. It can be used for filling juice,milk,tea,water,non-gas contained beverage.

Brief introduction
This machine is comprised of rinsing(disinfectant,pure water), sterilzing,filling and capping system.Rinsing(disinfectant,pure water): grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Sterilzing:use a steam generator to provide the steam,the steam sterilzing part is isolated,It also use a cap sterilizer to sterilzing the caps.
Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

Features

1. All the machine part which contact with liquid is high quality stainless steel 304.
2. The relative fittings and components are from international famous brands,such as Siemens,Mitsubishi.
3. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
4. This machine is my company's advanced technology development.It is customized according to our customer's special requirements.
5. It intergrates washing by disinfectant,washing by pure water,sterilizing by steam,filling and capping in one unit machine.
6. It also have beautiful overall appearance and excellent mechanical operation functions.
7. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
8. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
9. Safe protective devices ensure safety of operator and machine
10. Unique control mechanism keeps circumfluence volume below 5%

Video show
https://www.youtube.com/watch?v=R0nKxquffpU&feature=share
Technique parameter

ModelRCGF18-18-18-18-6
Productivity2000-3000BPH
Rinsing Head(disinfectant)18
Rinsing Head(pure water)18
Sterilizing by steam18
Filling Head18
Capping Head6
Bottle Volume350ml~2000ml±10ml
Bottle Diameterφ50-92mm
Bottle Height150-310 mm
Filling Tolerance±2%
Cap Size28mm and 30mm Aluminum Standard Caps
Air Pressure0.6MPa
Air Consumption500 L/min
Gas Consumption0.4 m3/min
Motor Power9.68kW
Voltage380V
Dimension(L×W×H) 2950*1800*2200mm
Weight6000kg
Filling PrincipleGravity Filling
