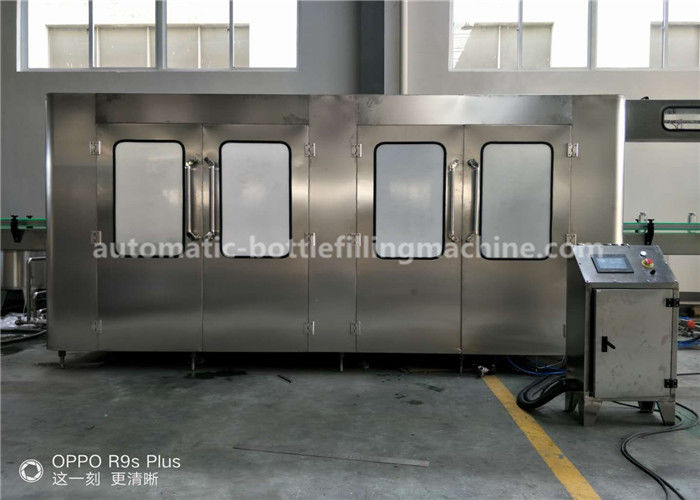

330ml Milk Juice Beverage Glass Bottle Rinsing Sterilizing Hot Filling Capping Machine
1. This 5-in-1 unit machine is suitable for glass bottle
2. Capacity:2000-3000 bottles per hour
3. Hot filling machine with back-flow system
4. It can be used for filling juice,milk,tea,water,non-gas contained beverage.
This machine is my company's advanced technology development.It is customized according to our customer's special requirements. It intergrates washing by disinfectant,washing by pure water,sterilizing by steam,filling and capping in one unit machine.It also have beautiful overall appearance and excellent mechanical operation functions.
1. All the machine part which contact with liquid is high quality stainless steel 304.
2. The relative fittings and components are from international famous brands,such as Siemens,Mitsubishi.
3. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
4. This machine is comprised of rinsing(disinfectant,pure water), sterilzing,filling and capping system.Rinsing(disinfectant,pure water): grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Sterilzing:use a steam generator to provide the steam,the steam sterilzing part is isolated,It also use a cap sterilizer to sterilzing the caps.
Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
5. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
6. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
7. Safe protective devices ensure safety of operator and machine
8. Unique control mechanism keeps circumfluence volume below 5%
|Rinsing Head(pure water)||18|
|Sterilizing by steam||18|
|Bottle Height||150-310 mm|
|Cap Size||28mm and 30mm Aluminum Standard Caps|
|Air Consumption||500 L/min|
|Gas Consumption||0.4 m3/min|
|Filling Principle||Gravity Filling|
