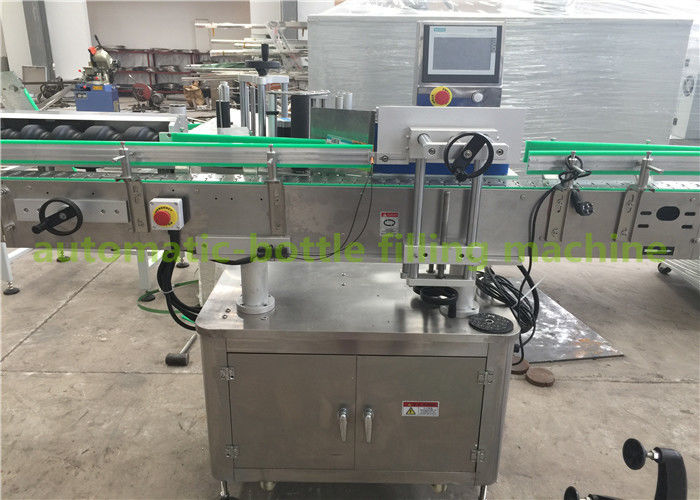

Automatic One Side Paper Sticker Labeling Machine For Round Glass Bottle

Features

1. With micro-computer labeling system, fast & stable, suitable for longtime work
2. with system check function: labels lacking or broken, leaving out, e-stop, abnormal frequency-conversion, typewriter ribbon lacking, it can detect all & then stops auto.
3. The I/O self-check function, can display all system photoelectric signals & motor, shorten repair time, reduce maintenance cost.
4. With step less speed control, labeling speed automatically changes according to conveying speed, no need to move labeling sensor.
5. Made of SUS304 & alumni alloy, totally meeting GMP requirement


The machine technical Parameter
1. Power supply:220V,50Hz,
2. Machine size:1950(L)*1100(W)*1300(H)(mm)
3. Weight: 1850Kg
4. Conveyor line from the land: 850mm ( can customize)
5. Labeling precision:±1mm (exclude product and label error);
6. Labeling speed:30-140 B/M(related to product size)

7. product size applicable: diameter:φ25mm～φ100mm, height:25mm～230mm

8. Each label size: 15≤Width≤100mm, 20mm≤Length≤320mm

9. Max lable supply: diameter 280mm,scroll inner diameter 76mm

10. Working tempreture: 10-40℃(affect the lable viscosity)

11. Circumstance relative humidity:15-85%

Lable parameter

1. Suitable label: adhesive lable

2. Distance between lables: 3-4mm±0.2mm

3. Surface material: weight:78 g/m2±10% thickness: 0.064mm±10%

4. Bottom paper: weight: 61g/m±210% thickness: 0.055mm±10%

5. Stretching resistance strengh:machine direction:16kg/25mm

6. Crosswise:7kg/25mm

7. Tearing resistanc strengh: machine direction:25g/piece

8. Crosswise:31g/piece
