| Capacity: | 4000BPH(500ml) | Control: | PLC+Touch Screen |
|---|---|---|---|
| Weight: | 2000kg | Material: | Stainless Steel 304 |
| Warranty: | One Year For Free | Function: | Bottle Washing Filling Capping |
| Driven Type: | Electric | Voltage: | 380V/50Hz |
| High Light: | mineral water filling machine,automatic water filling machine |
||
Brief introduction

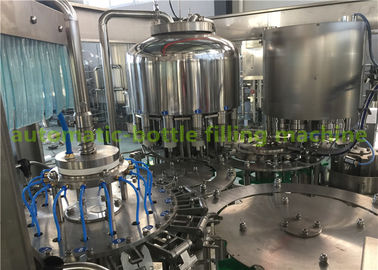

CGF series bottle water filling machine water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.
Different models can satisfy various requirement of output from 2000B/H to 24000B/H.
The whole process is automatic ,suitable for PET bottle ,plastic bottle filling mineral water and pure water.
Filling way using the gravity or micro pressure filling ,make the speed faster and more stable,so compared with the same model our machine output is higher and more efficient.
The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine adopts advanced automatically, interworking with inverter with inverter running more stable and reliable the
photoelectric sensor detect all part running state with high degree of automation, easoperation.
Features
Air conveyor is horsed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel ANSI304, except the horses, board of plastic and nylon.Water Filling Machine
1. Stable conveying, using synchronous chasing control between the conveying belt and engine, making bottles in good condition in the conveying: non-falling, non-block, non-jam.
2. Conveying belt is designed by module, component can be interchanged easily, with compact structure, low noise, easy assembling and maintaining, good flexibility to combine the bottle type according to the different capacity.
3. The design of electrical control is advanced and rational, we can design the control method , select the electrical control component according to client's layout, to improve the conveying stability
4. Set the switch according to conveying system layout or customers' reasonable requirement, for the convenience of operation.
5. Belt lubricating system is equipped
6. Main part all using ANSI304
7. Fringe board is using the U.S. Rexnord technology to produce Water Filling Machine
Technical parameters
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) | Bottle diameter40-80; | |||
| Height | Height:130-280 | (Height):150-320 | ||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) | 0.18 | |||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)mm | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 |
3500×2200×2250 |
