| Color: | Silver Gray | Control: | PLC+Touch Screen |
|---|---|---|---|
| Weight: | 2000kg | Material: | Stainless Steel 304 |
| Warranty: | One Year For Free | Function: | Bottle Washing Filling Capping |
| Driven Type: | Electric | Power: | 4.23kw |
| High Light: | mineral water filling machine,automatic water filling machine |
||
Description

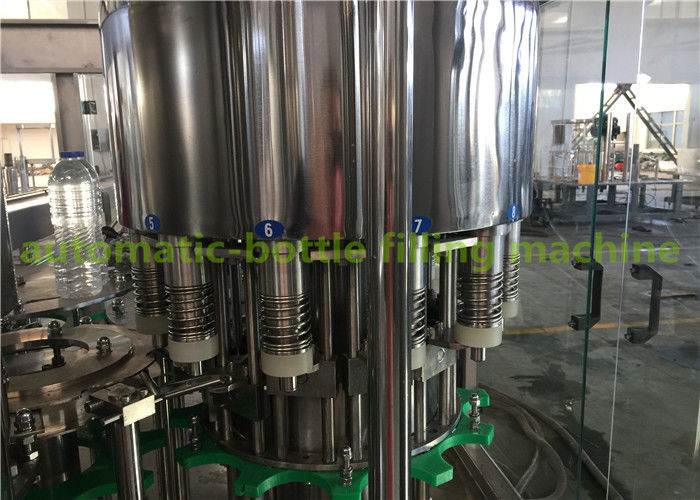

(1) This Mineral Water Bottling Plant is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping are achieved in one machine.
(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series Mineral Water Bottling Plant adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.
Primary features
1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2) Only exchanging "star wheel", "feeding screw" and "arc guide plate" while exchanging model of bottle to be need.
3) The all parts directly contacted with media are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.
4) Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
5) Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling automatically with a high speed and the control of liquids level is accurate.
6) High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
7) The "capping head" is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.
8) Adopting efficient cap settling system which carried perfect cap feeding and protection device.
9) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
10) Carried the perfect protection system to overload, it can be used to protect facilities and operators efficiently.
11) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.
12) The primary electric components such as touch screenPLCtransducer etc. Are all adopted with world famous products.
Technical parameters
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) | Bottle diameter40-80; | |||
| Height | Height:130-280 | (Height):150-320 | ||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) | 0.18 | |||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)mm | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 |
3500×2200×2250 |
