| Capacity: | 1500BPH(based On 5L) | Warranty: | One Year For Free |
|---|---|---|---|
| Machine Material: | Food Grade Stainless Steel | Weight: | 5000kg |
| Overall Dimension(L*W*H): | 3500*2300*2800mm | Bottle Type: | Pet Bottle / Plastic Bottle |
| Application: | Food,beverage,commodity,chemical | Processing Type: | Water |
| High Light: | mineral water filling machine,automatic water filling machine |
||

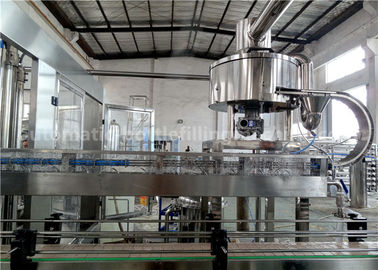

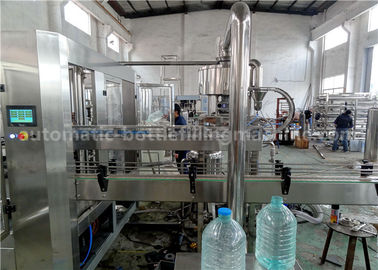

The CGF12-12-4 3-in-1 Filling Machine is suitable for filling big volume(3L-10L)polyester or
PET bottles with non-carbonated drinks (pure water, mineral water, etc.). It realizes an
automatic combination of three processes including bottle-washing, filling and cap-screwing.
Product Introduction
1. The automatic water filling machine use direct connection technology between air conveyor and in-
feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-
changing.
2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine.
Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily ,
without equipment height adjustment ,only arch board and starwheel such little nylon parts need to be
changed.
3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no
contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.

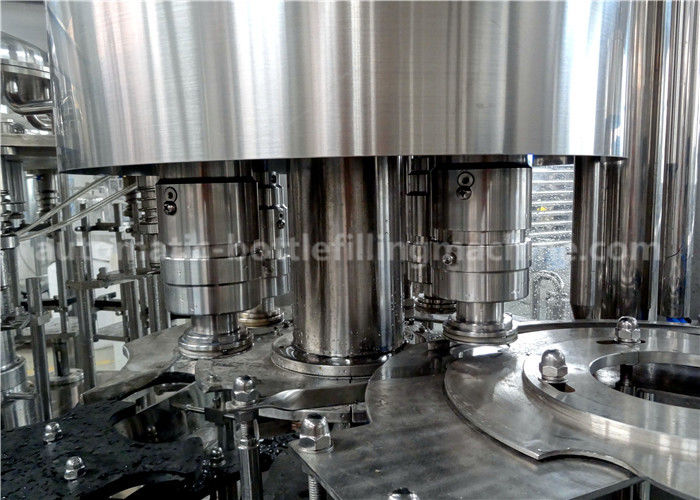

4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any
liquid loss.
5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing.
The automatic water filling machine applies to the production of purified water and mineral water.
Technical parameter
|
Model
|
CGF9-9-4
|
CGF12-12-4
|
CGF16-16-4
|
CGF20-20-6
|
| Rinsing head | 9 |
12
|
16 |
20
|
| Filling head | 9 | 12 | 16 | 20 |
| Capping head | 4 | 4 | 14 | 6 |
|
Production capacity(bottle/hour)
|
500-1000
|
1000-1500
|
1500-2000
|
2500-3000
|
|
Suitable bottle diameter(mm)
|
Φ=110-220 H=170-380(2000-6000ml)
|
|||
|
Spraying pressure(kg/ m2)
|
2-3
|
|||
|
Motor power(kw)
|
(Main motor)2.2kw
|
(Main motor)2.2kw
|
(Main motor)3kw
|
(Main motor)5.5kw
|
|
Overall dimension(mm)
|
2400x1650x2500
|
2600x1920x2550
|
3100x2300x2800
|
3800x2800x2900
|
|
Weight(kg)
|
2500
|
3500
|
4500
|
6500
|
