Product Details:
Payment & Shipping Terms:
|
Machine Material: | Stainless Steel 304 | Filtering System: | Quartz Sand , Carbon, Sodium Ion,precision |
---|---|---|---|
Capacity: | 1T/H | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Voltage: | 220V/380V | Condition: | New |
Quantity Of Membrance: | 2pcs | Warranty: | 1 Year |
High Light: | water purification systems,water treatment machine |
Brief introduction
1. One-stage reverse osmosis water treatment process
Original water(tap water, surface water,underground water) pass pretreatment ,sophisticated filter,and
then sent to reverse osmosis by high pressure pump to produce pure water directly that is known as one-
stage reverse osmosis.
One-stage reverse osmosis is suitable for the original water with conductivity less than 500 us/cm and
conductivity of output water is 1-10 us/cm.
2. 4 filters----quartz sand filter,active carbon filter,sodium ion filter,precision filter
1) Quartz sand filter(the left one in below picture)
Height: 2000mm
Diameter: 400mm
Material: stainless steel (Food grade)—made in China
Component: water to send, water collection, pressure gauge, filtration material. Valves, etc
Filter media: Quartz sand
Usage: Mainly used to remove the algae, suspended solids, colloid, etc
Filter volume: 1m³/h
2) Active carbon filter(the middle one in below picture)
Model: HML-1
Height: 2000mm
Diameter: 400mm
Material: stainless steel (food grade)mirror polishing—made in China
Component: water to send, water collection, pressure gauge, filtration material, Valves, etc
Media: active carbon
Usage: Mainly used to remove water odor, residual chlorine, chloride and heavy metals, reduce color
and optimize water quality.
Processing capacity: 1m³/h
3) Sodium ion filter(the right one in below picture)
Model: SNJ-1
Height : 2000mm
Diameter: 400mm
Material: SUS304 stainless steel(food grade)—made in China
Component: water to send, water collection, pressure gauge, valve materials, acid exchange resin,
dissolve measurement, valves, etc
Media: Acid exchange resin
Usage: Mainly used to remove water calcium magnesium ions
Deal volume: 1m³/h
4) Precision filter(the smallest one in below picture)
Model: JML-1
Height: 1400mm
Diameter: 320mm
Material: SUS304 stainless steel (food grade)—stainless steel
Filter precision: 5μm
Usage: Mainly used to remove water tiny impurities.
Deal volume: 1m³/h
Open the filter to remove impurities
Function
Machine | Usage |
Quartz sand filter | To remove the particulate solids from waste water |
Active carbon filter | To remove the chlrine and the smell of water |
Sodium filter | To soften the water, and exchange the calcium ion & magnesium ion |
Precise filter | To clear the granules bigger than 5 µm and also protect the reverse osmosis device membrane |

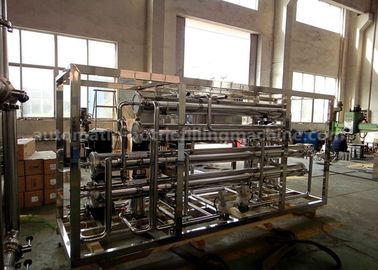

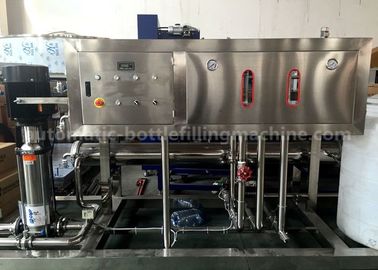

Reverse osmosis device | Used to desalt and sterilizer the water, used for distill water |

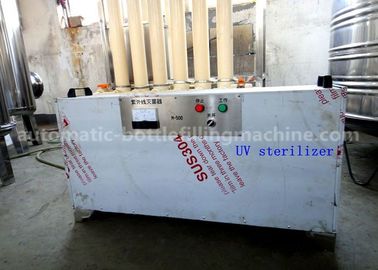

Ozone sterilizer and UV sterilizer | Special for waste water disinfection |
Process
Raw water tank→Raw water pump→Quartz sand filter→Active carbon filter→Sodium filter→Precise
filter→Reverse osmosis device→Ozone sterilizer→UV sterilizer→Pure water tank
