Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V 3phrase/ 220V 1phrase | Warranty: | One Year For Free |
|---|---|---|---|
| Color: | Silver Gray | Weight: | 4500kg |
| Overall Dimension(L*W*H): | 3100*2300*2800mm | Packaging Type: | Bottles,Cartons |
| Sealing Way: | Plastic Screw Cap | Automatic Grade: | Fully-automatic |
| High Light: | mineral water filling machine,automatic water filling machine |
||
|
This kind water filling machine can be used for 3L-10L bottle, and no need to change any spare
parts when you change the bottle volume from 3L to 10L. |
|

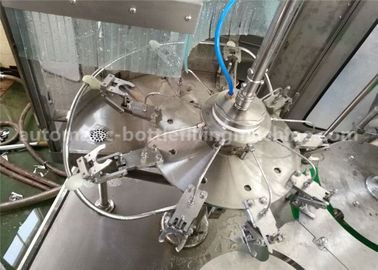

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption &
more clean. |
|
High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly
& steadily. |
|
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure
minimum bottle crash during capping. |
| No bottle,no filling, no capping and Automatic stop when lack of bottle. |
Product Description

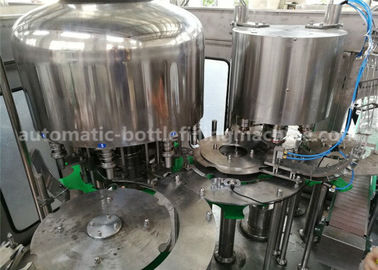

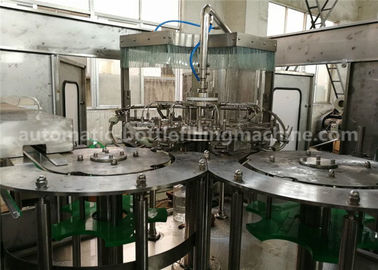

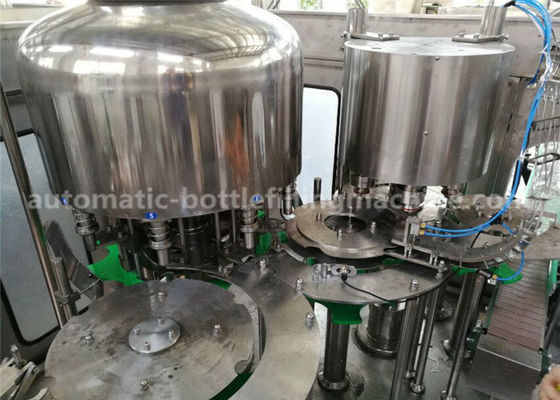

(1) water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection,
label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic
production line.
(2) The water filling line is mainly used in the beverage filling operations. The three functions of bottle
wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3) The machine is used in filling juices, mineral water and purified water in bottles made of polyester and
plastics. The machine can also be used in hot filling if being installed with temperature controlling device.
The handle of the machine can be freely and conveniently turned to adjust the machine to fill various
types of bottles.
(4) The filling operation is faster and more stable because the micro pressure filling operation of the new
type is adopted. There the output and benefit of the machine is higher than the machinery of the same
specifications.
(5) The advanced OMRON programmed controller (PLC) is adopted to control the machine to run
automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated
with the transducer of the main machine to make the operations of moving bottle forward steadily and
reliably.
(6) It is convenient to operate with higher automation because every part of the machine is inspected to
run with photo electricity, On the bases, the filling parts of the machine can be changed into filling
methods of lower vacuum.
(7) The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy
and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an
idea-preferred equipment for beverage maker.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------This equipment is the main technical parameters:
|
Model
|
CGF9-9-4
|
CGF12-12-4
|
CGF16-16-4
|
|
Heads of washing,filling,capping
|
9-9-4 |
12-12-4
|
16-16-4
|
|
Production capacity(bottle/hour)
|
500-1000
|
1000-1200
|
1500-2000
|
|
Suitable bottle diameter(mm)
|
Φ=110-220 H=170-380(2000-6000ml)
|
||
|
Spraying pressure(kg/ m2)
|
2-3
|
||
|
Motor power(kw)
|
(Main motor)2.2kw
|
(Main motor)2.2kw
|
(Main motor)3kw
|
|
Overall dimension(mm)
|
2400x1650x2500
|
2600x1920x2550
|
3100x2300x2800
|
|
Weight(kg)
|
2500
|
3500
|
4500
|
