Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing

Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing
Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing

Large Image :  Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing

Product Details:
Place of Origin: China(mainland)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: RCGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Detailed Product Description
Production Name: Juiced Beverage Filling Machine Model: RCGF18-18-6
Function: Sterilizing, Rising, Filling, Capping Suitable Bottle: PET Plastic Bottle
Suitable Cap: Plastic Screw Cap Power Supply: 380V 50HZ 3Phases
Control: PLC+Touch Screen Capacity: 6000 Bottles Per Hour
Filling Material: Juice, Water, Tea Warranty: 1 Year
High Light:

fruit juice production line

,

juice bottling machine





Automatic Green Tea, Juiced Beverage Bottling Equipment,



Production Machine Price




Product introduction




This machine integrated sterilizing, rising, filling and capping four functions in one unit, it has



18 rising heads, 18 filling heads and 6 capping heads, can filling 6,000bottles per hour, suitable



for PET bottle, non-gas liquid, like various juiced beverage, water etc.

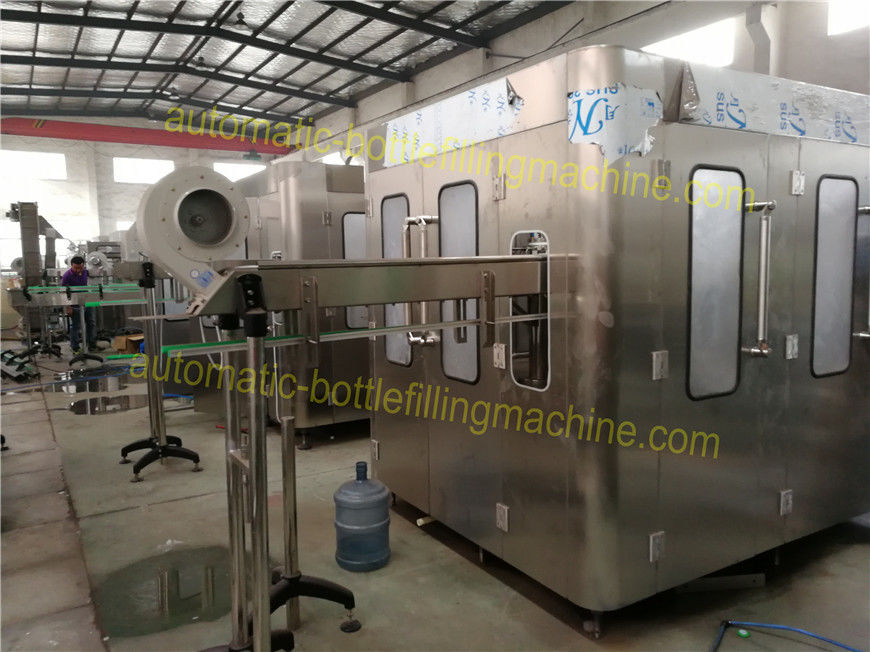

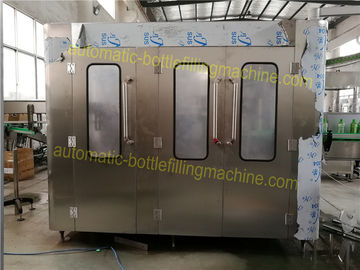

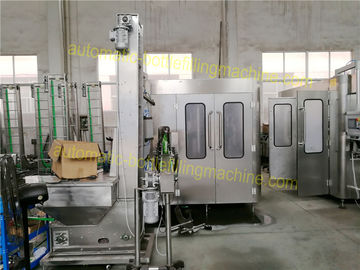

Machine pictures


Washing part of bottle washing filling capping machine



a) Rotary pan is made of stainless steel 304.



b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable




Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing 0

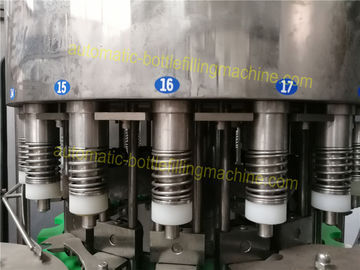

Filling part of bottle washing filling capping machine



a) Rotary pan is made of stainless steel 304



b) The way of filling is gravitation filling.



c) The filling valve is adopted best stainless steel 304



d) The structure of filling valve is reasonable, the amount is correct



e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-



neck seizes mouth of bottles. The elevator device with the action of gear realize the up and



down of bottle.



 Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing 1



Capping part of bottle washing filling capping machine



Capping machine is one of the highest precision machines, which greatly affects the



reliability of device and the defective rate of product. The characteristic is as follows:



a) The dropping cap guide track fixes the device which can protect the cap from turning



over and also set the device which can take out the inverse cap, equip a photo electricity



switch which can stop the machine when lacking the cap and also avoid the situation that



there is bottle without cap.



b) The bottle inlet switch which is set in the capping machine, with the locking cap which is



the connection of the dripping cap guide track and dialing cap pan controls the discharging of



cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.



Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing 2


electrical system

1) Material of filling valve and liquid tank is 304

2) Main motor:National brand

3) Sliding bearing:Taiwan

4) Frequency inverter: MITSUBISHI

5) Touch screen:Taiwan

6) PLC: MITSUBISHI

7) Pneumatic components: Airtac

8) Seals:National brand

Automatic Juice Bottle Filling Machine 6.57KW For Coffee Drink Filling / Sealing 3
 technical parameter



Model RCGF16-16-8
Capacity 6000bph (500ml PET bottle)
Suitable bottle Polyester bottle, PET bottle
Filling materail Fruit juice, tea, water
Bottle Height 150-310mm
Bottle Diameter 40-108mm
Filling Temperature ambient
Filling Technology gravity filling
Applications purified water and mineral water
Power supply 380V 50Hz 3Phases or customized
Total power 6.57KW
Dimension 2450*1800*2200mm
Weight 5500kg



We are professional in beverage filling machine production, pls tell

us your request, we will show you best proposal... ...
