4000 - 6000 BPH Capacity Bottle Filling Machine , Rinsing Filling Capping Machine 2450*1800*2200mm

China 4000 - 6000 BPH Capacity Bottle Filling Machine , Rinsing Filling Capping Machine 2450*1800*2200mm supplier

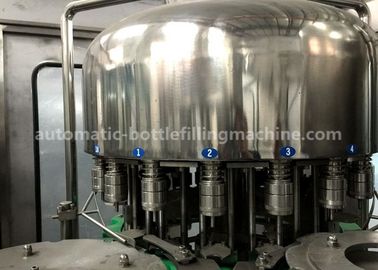

Large Image :  4000 - 6000 BPH Capacity Bottle Filling Machine , Rinsing Filling Capping Machine 2450*1800*2200mm

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: PET Plastic/Glass Bottle After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: One Year For Free Function: Bottle Washing Filling Capping
Filling Material: Food Grade Stainless Steel 304 Weight: 3500kg
Power: 5.03kw Overall Dimension(L*W*H): 2450*1800*2200mm
High Light:

mineral water filling machine


liquid filling machine


5.03kw Silver Gray Purified Water / Mineral Water Plant Filling Machine


With CE




1. Purified water filling machine
2. Mineral water plant
3. Bottled water filling machine
4. Good abrasive,high stability,low failure.
5. Capacity:6000 bottles per hour





(1) The mineral water filling machine has three functions for bottle rinsing, filling and capping, which are


composed in one body of the machine . The whole process is full automatic.


(2) This machine is used in filling mineral water, drinking water, flavor water, etc. in bottles made of


polyester and plastics .


(3) The filling packaging operation is faster and more stable because the micro pressure filling operation


of the new type is adopted . There the output and benefit of the machine is higher than the machinery of


the same specifications .


(4)PLC control, full automatic working .


(5) Touch-screen control panel, easy operation.


(6) Singel positional adjustable central transmission post, more stable lable transmission .


(7)Screw rod of separate bottle: stable transportation of bottles.


(8)Label control sensor shelf: original creation tail surface and sensor are combined to improce the


precision of cutting the material .



Technical parameter


Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80 Bottle diameter50-100
Height(mm) Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)


Water consumption for Water bottle (kg/h) 800 1600 2500
Spraying position 5 5 6
Dripping bottle position 3 3 3.5
Gas source pressure(Mpa)

normal pressure

Gas consumption(m3/mm) 0.3 0.3 0.4
Total power(kw) 4.23 5.03 6.57
Total weight(kg) 2000 3500 5500
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200



We can provide TURNKEY PROJECT


1. bottle minereal/pure water production line;


2. barrel mineral/ pure water production line


3. bottling carbonated beverage production line (like coca cola);


4. bottling juice production line;


5. canning beverage production line;


6. glass bottle beer production line;


7. milk/tea filling production line;


8. oil/soy sauce/vinegar/tomato paste filling machine
