Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH

Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH
Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH

Large Image :  Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH

Product Details:
Place of Origin: China(mainland)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: RCGF40-40-40-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Detailed Product Description
Production Name: Juiced Beverage Filling Machine Model: RCGF40-40-40-12
Function: Sterilizing, Rising, Filling, Capping Suitable Bottle: PET Plastic Bottle
Suitable Cap: Plastic Screw Cap Power Supply: 380V 50HZ 3Phases
Control: PLC+Touch Screen Material: SUS304
Capacity: 20000 Bottles Per Hour Warranty: 1 Year
High Light:

fruit juice production line

,

small scale juice bottling equipment



Lemon / Pineapple Juice Filling Making Production Equipment Line

Prices


Characteristic

1. The automatic bottled water filling machine applies bottle handling technical and the filling



valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high



speed. The bottle handling technical also make the different bottle changing easily without



changing too many accessories.

2. This machine uses new generation stainless steel spring washing clips and the clips do not



contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and



the outside of the bottle.

3. The advanced normal pressure filling principle was applied. Filling is quick, and stable. Not



contacting with the liquid avoids second pollution and oxidation.

4. This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing.



The sealing cap force can be adjusted.

5. Independent electricity box makes sure every electrical appliance works normally.



Features

1) Material of filling valve and liquid tank is 304

2)  Main motor:National brand

3)  Sliding bearing:Taiwan

4)  Frequency inverter: MITSUBISHI

5)  Touch screen:Taiwan

6)  PLC: MITSUBISHI

7)  Pneumatic components: Airtac

8)  Seals:National brand

9)  Photocell switch and proximity switch:Taiwan



Detailed parameter



  20000BPH 500ml / 10000BPH 1L/ 7000BPH 1.5L/ 5000BPH 2L juice filling machine
Machine model Sterilizing head 40 heads
Rinsing head 40 heads
Filling head 40 heads
Capping head 12 heads
Suitable bottle materail PET
Volume 100-2000 ml
Body diameter 50-108 mm
Body height 50-310 mm
Suitable cap material Plastic screw cap
diameter 28-38 mm
Main performance parameters Producing capacity 6000BPH(250ML-500ML) bottles per hour
voltage 380V 50HZ 3Phases
Power 10 KW
Dimension 6250*3050*2300mm mm
Weight 7500 kg


Machine pictures

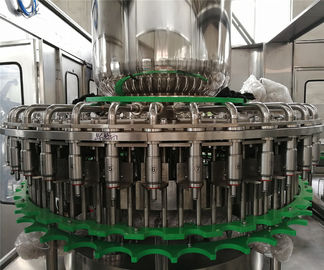

overall look



This machine integrated sterilizing, rising, filling and capping four functions in one unit, it has 40

sterilizing heads, 40 rising heads, 40 filling heads and 12 capping heads, can filling 20,000

bottles per hour, suitable for PET bottle, non-gas liquid, like various juiced beverage, water etc.


Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH 0

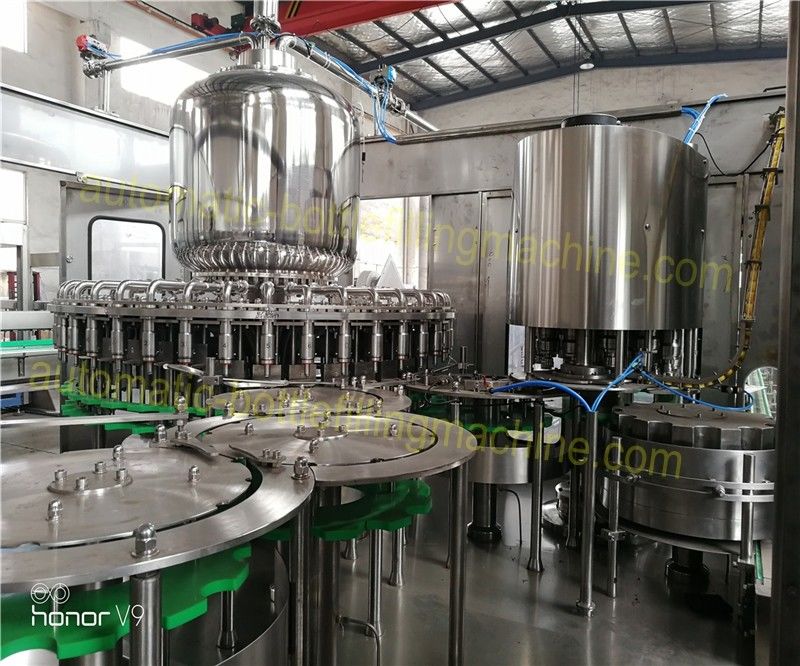

inner look

Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH 1

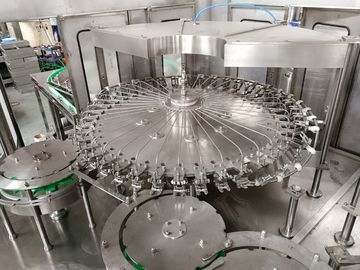

electrical system

Mango / Sugarcane Aseptic Juice Filling Machine 40 Rinsing Heads 6000BPH 2



We are professional in beverage filling machine production, pls tell

us your request, we will show you best proposal... ...
