| Type: | Filling Machine | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully-automatic | Weight: | 3000kg |
| Dimension: | 2450*1800*2200mm | Power: | 6.68kw |
| Warranty: | 1 Year | Capacity: | 6000BPH |
| High Light: | fruit juice production line,small scale juice bottling equipment |
||
Customized two capping glass bottle juice filling
machine / bottling plant
Introduction:
1. This 4-in-1 glass bottle filling machine integrates rinsing,filling,crown capping,ring-pull capping
into one unit,it is customized design.
2. Its capacity is 6000 bottles per hour.
3. Bottle type is glass bottle
Features:
1. The core parts of machine employs PLC+, frequency convertor+ and human-machine
interface control technology
2. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
3. The machine structure is reasonable and firm, the running state is stable
4. The suspension bottle neck catcher allows the machine change the bottle type easily,Safe protective
devices ensure safety of operator and machine
5. Unique control mechanism keeps circumfluence volume below 5%
6. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles
adversely affecting product quality
7. High efficient clean air filter circulation system ensures high sanitary requirements
8. Low overall machines noise that is comparable to any internationally known equipments in its class
9. Self-lubricationg system imported from America provides continuous smooth operation.
Technical parameter
| Model | RCGF18-18-6-6 |
| Productivity | 6000BPH |
| Rinsing Head | 18 |
| Filling Head | 18 |

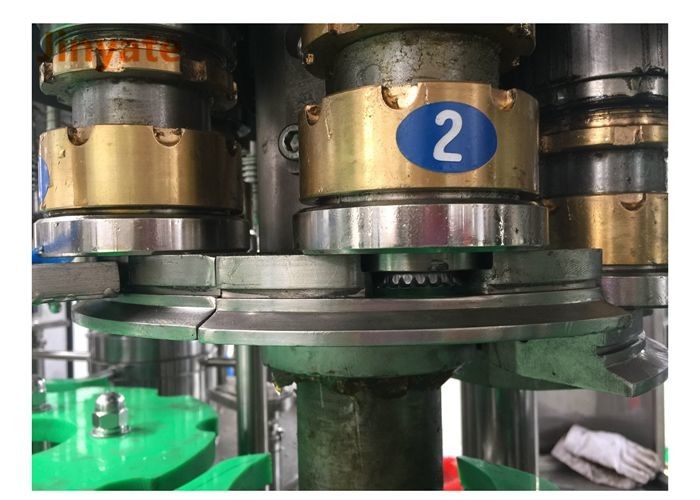

| Crown Capping Head | 6 |
| Ring-pull capping head | 6 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Filling Water Consumption | 3 m3/h |
| Rinsing Water Consumption | 1 m3/h |
| Motor Power | 6.68kW |
| Voltage | 380V |
| Dimension | (L×W×H) 2450*1800*2200mm |
| Weight | 3000kg |
| Filling Principle | Gravity Filling |
1. One year warranty for the whole system.
2. Free equipment installation and debugging.
3. After one year, we can help you to maintain the machine and the accessories are provided only one the
cost price.
4. We can provide internship service and help you train the operator and mechanic.
5. Free beverage production technology and process configuration.
6. We can help you to design the product line, workshop and provide turn-key project.
