Product Details:
Payment & Shipping Terms:
|
| Automatic Grade: | Fully Automatic | Material Of Machine: | Stainless Steel 304 |
|---|---|---|---|
| Bottle Type: | PET Plastic/Glass Bottle | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | One Year For Free | Function: | Bottle Washing Filling Capping |
| Color: | Silver Gray | Weight: | 3500kg |
| Power: | 5.03kw | Overall Dimension(L*W*H): | 2450*1800*2200mm |
| High Light: | mineral water filling machine,liquid filling machine |
||
Feature
Product Description
3. The filling water machine case and the parts contacting with the materials are made ofstainless steel
which ensures the good external look and easy washing.
4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel
304, if needed,Stainless steel is also available.

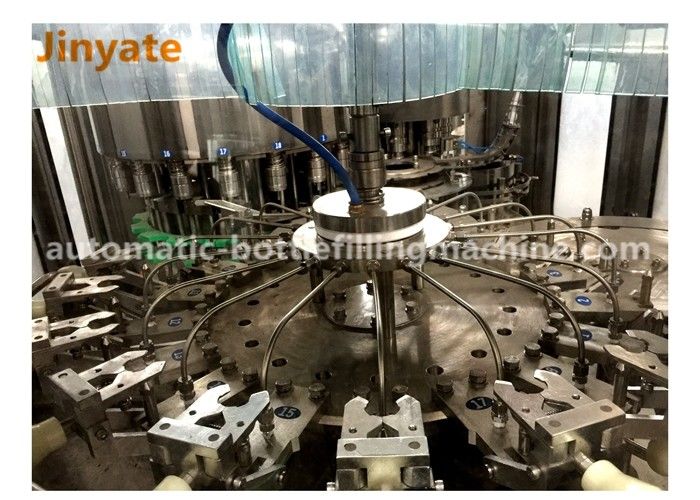

5. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic
rinsing, filling and capping.
6. Most elements of the electrical system use famous international brand, for example,Mitsubish,Omron
brand .
7. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure
rate, etc. The quality of the equipments reaches the advanced level of the world.
8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
9. Easy to operate, save the cost for workers.
Technical parameter
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 |
| Filling precision | ≤±5MM(Liquid Level) | ||
| Polyester bottle standard(mm) | Bottle diameter40-80 | Bottle diameter50-100 | |
| Height(mm) | Height:130-280 | (Height):150-320 | |
| Suitable cap shape | Plastic Screw Cap | ||
| Water pressure of Washing bottle(MPa) |
0.18 |
||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 |
| Spraying position | 5 | 5 | 6 |
| Dripping bottle position | 3 | 3 | 3.5 |
| Gas source pressure(Mpa) |
normal pressure |
||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 |
| Total power(kw) | 4.23 | 5.03 | 6.57 |
| Total weight(kg) | 2000 | 3500 | 5500 |
| Dimension(L*W*H) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 |
We can provide beverage production line as below:
1. bottle minereal/pure water production line;
2. barrel mineral/ pure water production line
3. bottling carbonated beverage production line (like coca cola);
4. bottling juice production line;
5. canning beverage production line;
6. glass bottle beer production line;
7. milk/tea filling production line;
8. oil/soy sauce/vinegar/tomato paste filling machine
