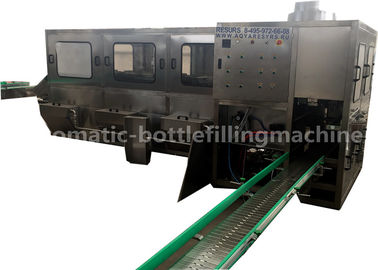

20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water

China 20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water supplier
20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water supplier 20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water supplier 20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water supplier 20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water supplier 20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water supplier

Large Image :  20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Dimension(L*W*H): 3800*1300*1600mm
Capacity: 300barrels Per Hour Bottle Volume: 3-5gallon
Power: 3.8kw Weight: 1200kg
Processing Types: Normal Temperature Material: SS304

20 Liter 5 Gallon Washer Water Bottles Filling Machine For Small Water Factory







Product Description




1. Automatic decapper

2. Automatic external brusher

3. Automatic internal brusher

4. 5 gallon washing filling capping machine

5. Cap heat shrink machine

6. Light checker



The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600







Internal brusher

20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water

Automatic internal barrel brusher is a special supporting equipment for 5 gallon water production. It is
suitable for mineral water production, can effectively remove the sediment and algae materials inside the
barrel which caused by water mineralization itself.The machine improve the washing effect greatly and reduce
the second pollution by manually washing. The complete machine is made of super stainless steel, resist
corrosion and easy cleaning. Main electrical elements adopt Siemens or Omron, penumatic system adopt
Festo.It has a compact construction,high working efficiency and automation



2 heads filling parts

20 Liter Washer Water Bottles 5 Gallon Water Filling Machine For Small Water Factory Water

Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
