40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm

China 40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm supplier
40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm supplier 40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm supplier 40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm supplier 40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm supplier 40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm supplier

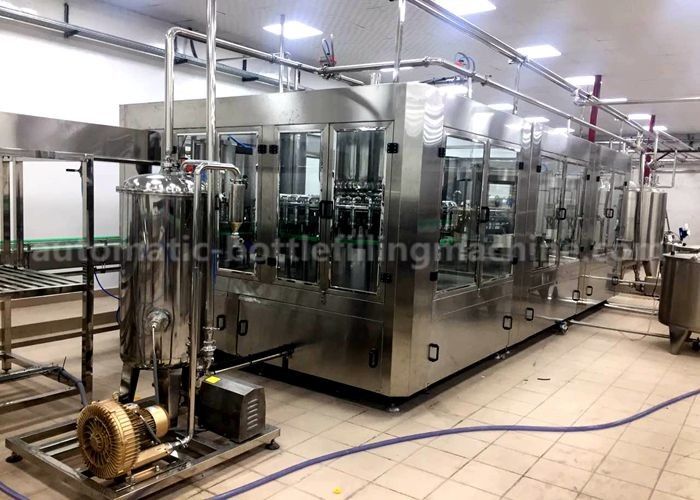

Large Image :  40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF40-40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 20000bph Driven Type: Electric
Overall Dimension: 6250*3050*2400mm Weight: 2500kg
Control: PLC+ Touch Screen Power: 9.5KW
Filling Temperature: Hot Filling Voltage: 220V/380V



Plastic Bottle Juice Hot Filling Machine / Line With 40 Rinsing









Heads





Description



1). The raw water will be purified and sterilized after passing through the water treatment system, and will



be stored in the purified water storage tank;



2). The juice will be prepared by the juice preparation system, the prepared juice is stored in the



insulation tank (for heat preservation) temporarily;



3). Automatic heat resistance PET bottle blow molding machine is connected with the water filling



machine by the Air conveyor;



4). Prepared juice will be pumped into the juice filling machine; At the same time, empty bottles pass



through the sterilizing,rinsing, filling and capping 4-in-1 monoblock, the bottles will be rinsed, filled and



capped.



5). Bottled water goes out from the water filling machine and will be transferred to the bottle over-turn



sterilizing machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing



machine, then the bottles will be transferred to the bottle cooling machine;



6). The bottles are getting dried after passing through the blowing dryer, and the dried bottle will go to the



labeling machine and PE film shrink wrapping machine;



7). The packed bottle water will come out from the PE film shrink wrapping machine.



Advantages



1). Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the



dissolved oxygen to the utmost extent.



2). Reasonable structured storage hopper and material supply system make the material in constant flow



speed, constant pressure without frothing. Usually high position tank is adopted.



3). The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In



moderate and high speed production line, the material distributor replaces the big liquid tank to realize



the complete CIP.



4). Sanitary filling head system is of umbrella structure, high filling speed.



5). Perfect filling temperature control system.



6). Reflux tank system has the function of supplying the material automatically.



7). Perfect CIP system.







Technique parameters:

Model RCGFB24-24-24-8 RCGFB32-32-32-10 RCGFB40-40-40-12
Bottle sterilizing head 24 32 40
Bottle rinsing head 24 32 40
Juice filling head 24 32 40
Cap screwing head 8 10 12
Rated production capacity 8000BPH 12000BPH 15000BPH
Installed capacity 6.5KW 8.7KW 9.5KW
Overall size 4070*2350*2400mm 5100*2600*2400mm 6250*3050*2400m





  We provide this RCGF40-40-40-12 juice filling line for our Congo's customer,these pictures are



photographed by our engineers when they installed the machines in Congo



  If you want the video of it ,please kindly leave message to me,I can show



you the video of whole this juice filling line





40 Heads sterilizing and rinsing part



40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm



40 heads filling part and 12 heads capping part (screw cap)



40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm



Juice mixing part



40 Rinsing Heads Juice Bottling Machine , Automatic Juice Filling Machine 6250*3050*2400mm
