| Name: | Juice Filling Machine | Filling Temperature: | Hot Filling |
|---|---|---|---|
| Filling Product: | Juice, Water, Vinegar, Sauce | Filling Nozzle: | 32 |
| Capacity: | 13000-14000BPH | Machine Material: | Stainless Steel |
| High Light: | SS304 juice manufacturing equipment,SS304 Juice Bottle Filling Machine,hot filling juice manufacturing equipment |
||

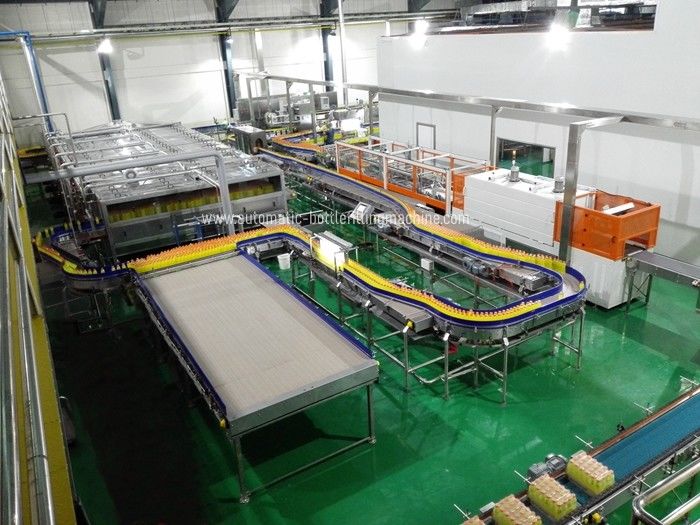

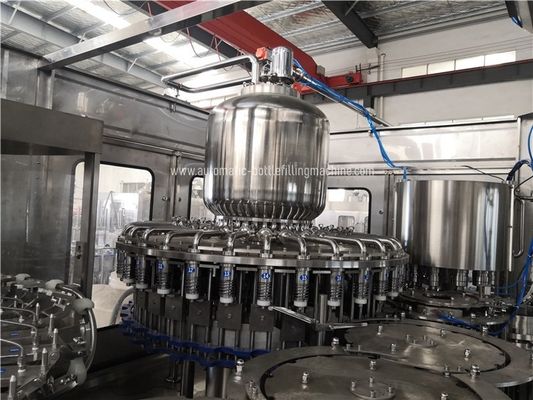

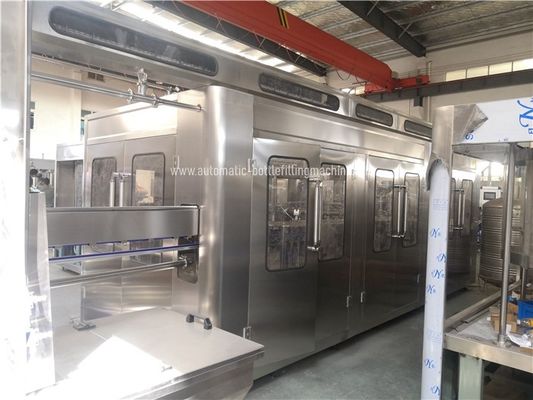

Juice Bottle Filling Machine, Mango Juice Production Line, Bottling Equipment
RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.
This is rinsing-rinsing-filling-capping 4 in 1 machine, to produce juice, it also can produce vinegar, sauce,
drinking water, flavor drink and other still beverage.
|
Model
|
RCGF8-8-3
|
RCGF16-12-6
|
RCGF16-16-5
|
RCGF24-24-6
|
RCGF32-32-8
|
RCGF40-40-10
|
|
capacity(BPH)
|
3000
(500ML)
|
4000
(500ML)
|
5500
(500ML)
|
8000
(500ML)
|
10000
(500ML)
|
14000
(500ML)
|
|
washing heads
|
8
|
14
|
16
|
24
|
32
|
40
|
|
filling
heads
|
8
|
12
|
16
|
24
|
32
|
40
|
|
capping heads
|
3
|
5
|
5
|
6
|
8
|
10
|
|
suitable bottle
|
PET bottle plastic bottle
|
|||||
|
diameter of bottle
|
55-100mm
|
|||||
|
height of bottle
|
150-300mm
|
|||||
|
suitable cap
|
plastic screw cap
|
|||||
|
weight(kg)
|
1500
|
2000
|
3000
|
5000
|
7000
|
7800
|
|
main motor power(kw)
|
1.2
|
1.5
|
2.2
|
2.2
|
3
|
5.5
|
|
S/N
|
Name
|
Brand
|
Country
|
|
1
|
Main motor
|
ABB
|
Switzerland
|
|
2
|
Inverter
|
MITSUBISHI
|
Japan
|
|
3
|
PLC
|
OMRON
|
Japan
|
|
4
|
Touch screen
|
MITSUBISHI
|
Japan
|
|
5
|
Contactor
|
SCHNEIDER
|
France
|
|
6
|
Thermo- relay |
SCHNEIDER
|
France
|
|
7
|
Air-break switch
|
SCHNEIDER
|
France
|
|
8
|
Proximity switch
|
TURCK
|
USA
|
|
9
|
Photoelectric switch
|
BANNER
|
USA
|
|
10
|
Air circuit system
|
SMC
|
Japan
|
|
11
|
Water pump
|
Southern
|
China
|
