Home ProductsJuice Bottle Filling Machine

13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads

13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads
13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads 13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads 13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads 13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads

Large Image :  13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: RCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 100 sets per year
Detailed Product Description
Product: Juice Filling Machine Function: Rinsing Filling Capping
Filling Heads: 32 Capacity: 13000-14000BPH
Filling Material: Juice, Tea, Water, Still Beverage Spare Parts: Free
High Light:

13000BPH Grape Juice Filling Machine

,

100mm Pet Bottle Filling Machine

,

100mm Pet Bottle Filling Machine

Orange Mango Grape Juice Production Line 3 In 1 Pet Bottle Filling Machine Line

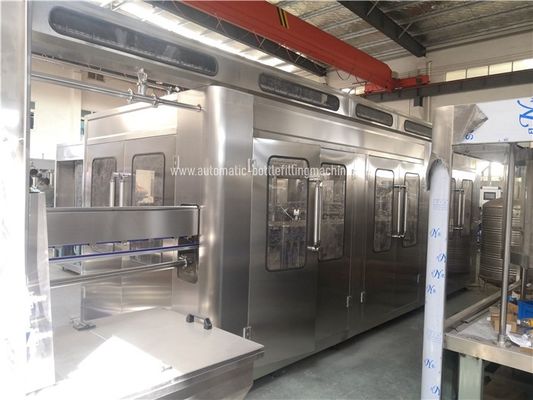

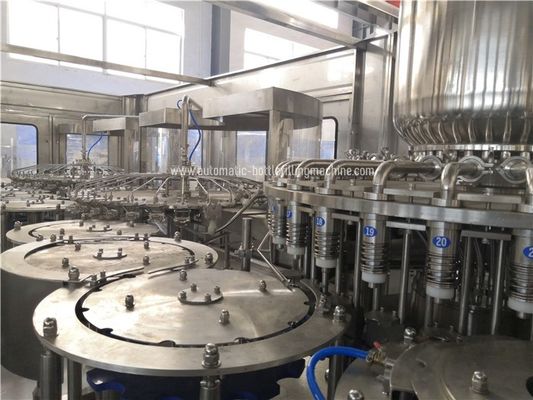

This machine combines rinser filler capper in one unit, can fill all juice,

water, tea drink, vinegar, and other still beverage,

it can work different size bottle, from 200ml to 2000ml.



This machine is for filling orange juice.

Suitable for plastic bottle.
The filling liquid level is accurate.
The machine is made of stainless steel 304

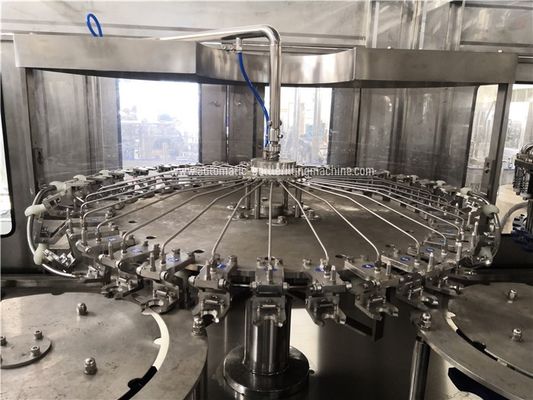

The structure is rotary ,different from the paddle wheel,This machine transform bottles from washing part to filling part to capping part by clip.

13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads 0



RCGF32-32-32-10

13000BPH Grape Pet Juice Bottle Filling Machine 32 Washing Heads 1





model
RCGF8-8-3
RCGF16-12-6
RCGF18-18-6
RCGF24-24-8
RCGF32-32-10
RCGF40-40-12
capacity(BPH)
2500
4000
5500
10000
14000
18000
washing heads
8
16
18
24
32
40
filling
heads
8
12
18
24
32
40
capping heads
3
6 68 8
10
12
suitable bottle
PET bottle plastic bottle
diameter of bottle
55-100mm
height of bottle
150-300mm
suitable cap
plastic screw cap
weight(kg)
2500
3000
4000
5000
7000
8800
main motor power(kw)
1.2
1.5
2.2
2.2
3
5.5
