High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface

China High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface supplier
High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface supplier High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface supplier High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface supplier High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface supplier High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface supplier

Large Image :  High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF40-40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 20000bph Automatic Grade: Fully-automatic
Overall Dimension: 6250*3050*2400mm Weight: 2500kg
Function: Bottle Washing Filling Capping Control: PLC+ Touch Screen
Filling Pressure: Negative Pressure Filling Temperature: Hot Filling,below 95℃



4-In-1 Complete Fruit Pulp Juice Washing Filling Capping Machine











Production Line









Product Description



1) The machine is mainly used in the beverage filling operations. The four functions of bottle sterilizing,



rinsing,filling and capping are composed in one body of the machine. The whole process is automatic.



The machine is used in filling juices, mineral water and purified water in bottles made of polyester and



plastics.



2) The machine can also be used in hot filling if being installed with temperature controlling device.



Its temperature is below 95℃ hot filling technology, filling valve and materials in and out of the line



without health dead Angle, at the same time equipped with CIP cleaning interface, block is equipped with



the bottle before RO water flushing device, to ensure that the bottle without mould.



The handle of the machine can be freely and conveniently turned to adjust the machine to fill various



types of bottles.



3) The filling operation is faster and more stable because the micro pressure filling operation of the new



type is adopted. There the output and benefit of the machine is higher than the machines of the same



specifications. The advanced OMRON programmed controller (PLC+Touch screen) is adopted to control



the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds



and coordinated with the transducer of the main machine to make the operations of moving bottle



forward steadily and reliably.Advanced technology.Is used for filling cap system automatic control,



automatic temperature testing, material high temperature alarm, automatic stop at low temperature and



reflux, no bottle no stamp, lack of bottle waiting, lack of cover downtime, etc



4) It is convenient to operate with higher automation because every part of the machine is inspected to



run with photo electricity, On the bases, the filling parts of the machine can be changed into filling



methods of lower







Technique parameters:

Model RCGFB24-24-24-8 RCGFB32-32-32-10 RCGFB40-40-40-12
Bottle washing head 24 32 40
Pulp filling head 24 32 40
Juice filling head 24 32 40
Cap screwing head 8 10 12
Rated production capacity 8000BPH 12000BPH 15000BPH
Installed capacity 6.5KW 8.7KW 9.5KW
Overall size 4070*2350*2400mm 5100*2600*2400mm 6250*3050*2400m





  We provide this RCGF40-40-40-12 juice filling line for our Congo's customer,



these pictures are photographed by our engineers when they installed the



machines in Congo



  If you want the video of it ,please kindly leave message to me,I can show



you the video of whole this juice filling line

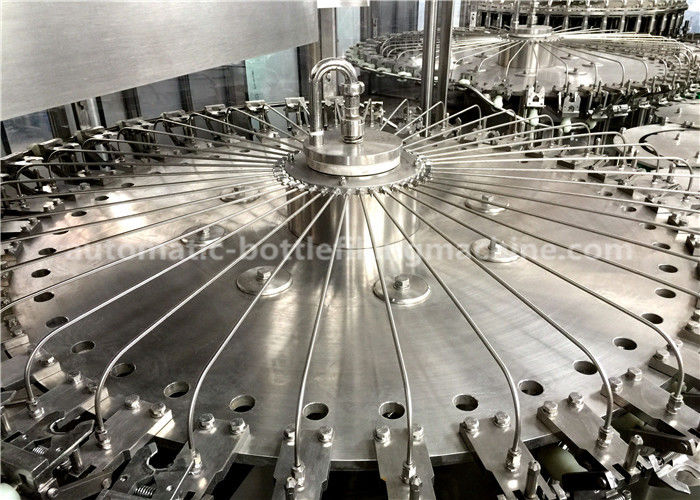

40 Heads Juice filling part



High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface



12 heads capping part (screw cap)



High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface



Workshop in Congo



High Presion Juice Bottle Filling Machine 9.5KW With CIP Cleaning Interface
