Zhangjiagang Jinyate Machinery Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Filling Pressure: | Balance Pressure | Capacity: | 2000BPH |
|---|---|---|---|
| Control: | PLC+touch Screen | Packing Volume: | 250ml,330ml,etc. |
| Power: | 2.25kw | Material: | Food Grade Stainless Steel 304 |
| Bottle Material: | Can | Processing Type: | Carbonated Drink,cola,fanta,pepsi |
| High Light: | aluminum can filling machine,beverage canning machine |
||
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw
and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the
equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with
the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor
chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous
company such as Japan's Mitsubishi, France Schneider, OMRON.
Introduction and Image

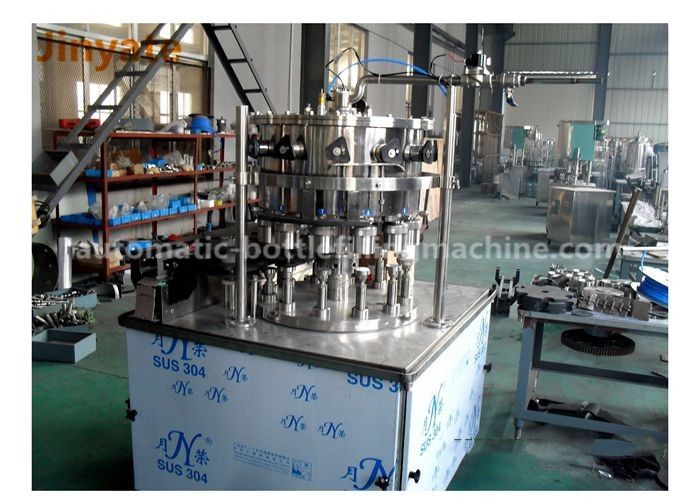

1. DY-12 balanced filler
The filler is developed on the basis of digesting and absorbing advanced technology introducing from
abroad and wity international advanced level. It is mainly used for filling gas-containing drinks, such as
aerated water, cola, sparkling wine, fruit tea and so on. It is advanced in construction, steady in
performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be
regulated infinitively. The filler is the ideal choice for drinks factories of small and middle type.
| Model | DY-8 | DY-12 | DY-18 | DY-24 |
| Production capacity | 1000-2000B/H | 1000-3000B/H | 2500-4600B/H | 2500-6000B/H |
| Bottle/cantype | glass bottle, PVC bottle, POP-Top can | |||
| Filling pressure | 0.2-0.3Mpa | |||
| Filling temperature | 2-6°C | |||
| Power | 0.75kw | 1.1kw | 1.5kw | 1.5kw |
| Overall dimensions | 1000*900*1800mm | 1100*1050*1800mm | 1400*1300*1800mm | 1600*1540*1800mm |
| Weight | 1000kg | 1600kg | 2100kg | 2700kg |
1) Production capacity: 2000 cans per hour
2) Bottle/can type:ф40-80 Height:50-340
3) Power:0.75kw
4) Overall dimension:900*700*1800mm
5) Weight:350kg
6) Voltage:380V/50HZ(can be adjustable)
3. Aluminum can rinsing equipment
1) Production capacity: 2000 cans per hour
2) Bottle/can type:ф40-80
3) Power:0.55kw
4) Overall dimension:1200*500*1200mm
5) Weight:100kg
6) Voltage:380V/50HZ(can be adjustable)
