Product Details:
Payment & Shipping Terms:
|
| Filling Pressure: | Normal Pressure | Capacity: | 4000-6000CPH |
|---|---|---|---|
| Control: | PLC+touch Screen | Packing Volume: | 250ml,330ml,etc. |
| Power: | 5.03kw | Material: | Food Grade Stainless Steel 304 |
| Can Material: | Aluminum Can/PET Can/Tin Can | ||
| High Light: | 4000CPH carbonated beverage filling machine,330ml carbonated beverage filling machine,4000CPH beverage packaging machine |
||
Applications:
Juice, tea, milk,vodka,non-gas beverage etc. in aluminum can, pop can and PET can
This machine is developed by our company on the basis of reference to the foreign filling and sealing machine for non gassy beverage and combining with China's national conditions.It is mainly used for filling and sealing all kinds of iron and aluminum cans.It has the characteristics of fast filling and sealing speed, consistent height between the liquid level in the tank and the opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation and so on. It is the most ideal filling and sealing equipment for canning factories.This product conforms to the national standards and enterprise standards, and is allowed to leave the factory after passing the strict inspection and test.
Equipment structure
Rack
Rotary filler
Rotary seamer
Aluminum infeed and outfeed system
Control
Working Procedure
Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.
Technical parameter
| Model | GF12-4 |
| Capacity (can/Hour) | 4000-6000CPH |
| Suitable can size ( ml ) |
Can diameter: 54.9mm; 57.5mm Can height:134mm; 168mm |
| Can size | 200/202/206/209 |
| Heads of filling | 12 |
| Heads of sealing | 4 |
|
Compressed air: |
0.4-0.8m |

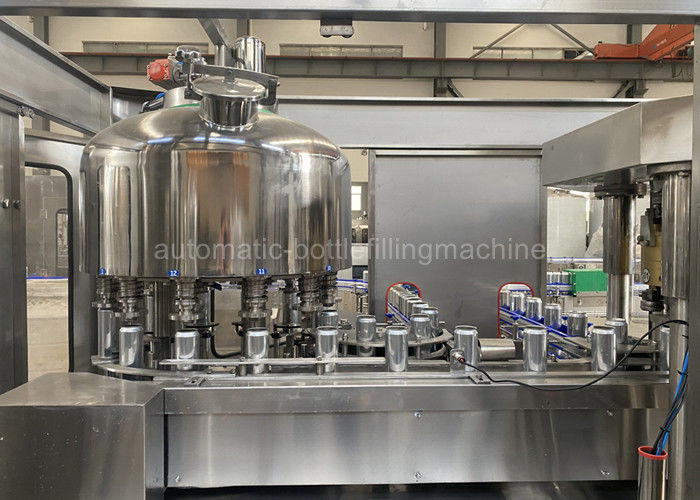

Filling part
1) Adopted Germany tech anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
3) The filling system can connect a CIP circulation system to wash the pipeline .This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

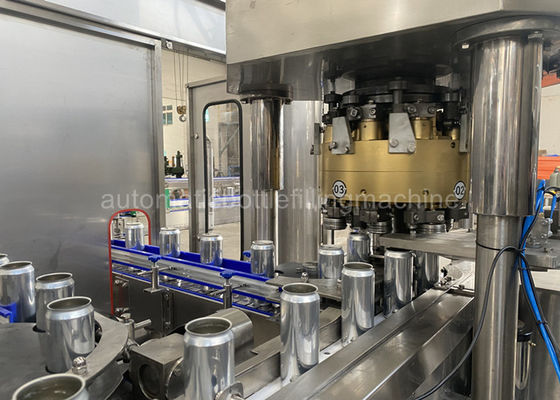

Seaming part
1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
2, Energy saving model, one motor can process all actions;
3, Full sealing effect make sure to be suitable for liquid packing can;
4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
5, Twice sealing tech to make well sealing effect, no leakage;
