Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory

China Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory supplier
Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory supplier Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory supplier Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory supplier Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory supplier Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory supplier

Large Image :  Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Dimension(L*W*H): 3800*1300*1600mm Driven Type: Electric
Capacity: 450BPH Weight: 1600kg
Control: PLC+ Touch Screen Packaging Type: Barrel, Bottles, Cans
Application: Beverage, Chemical, Food Voltage: 220V/380V



5 Gallon / 19 Liter Mineral Water Filling Bottling Machine For Beverage



Factory


Introduction



The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150



type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In



order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing



and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal



barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling,



capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which



integrates mechanism, electricity and pneumatic technologies together.



Whole 5 gallon water filling line



Water treatment system → Bottle blowing machine → Automatic decapper → External and Inner



brusher → Rotary type barrel washing filling capping machine → Cap elevator →Light checker



Heat shrinker





Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

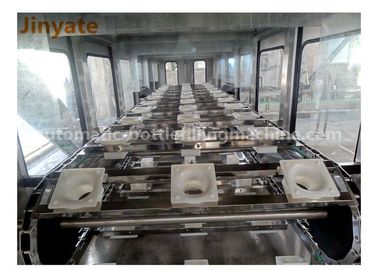

3 heads filling part



Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory


Outside look



Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory



Conveyor



Mineral Water 20 Ltr Water Jar Filling Machine Electric Driven For Beverage Factory





"This QGF-450 5 gallon water filling machine is designed for our Russian customer"




Electrical component for main machine:



Name Brand
Auto switch Zhengtai
PLC Mitsubishi
Button,turn button,indicator light Schneider
Air cylinder Sanli
Water pump for filling Nanfang
Water pump for filling Nanfang
Air cylinder of main shaft AIRTAC
Lifting air cylinder AIRTAC
Capping air cylinder AIRTAC
Air cylinder for pushing empty barrels AIRTAC
Air cylinder for filling valves AIRTAC
Air source handler AIRTAC
Air pipes,joint,etc AIRTAC
Spraying nozzle Shanghai
Chain plate SUS 304
Water inlet valve SUS 304
Filling valve SUS 304
