Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment

China Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment supplier
Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment supplier Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment supplier Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment supplier Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment supplier Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment supplier

Large Image :  Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Filling Machine Packaging Type: Round / Flat Bottle
Overall Dimension: 3600*2800*3150mm Power: 918kw
Filling Material: Juice,tea,non-gas Water,milk Material: SUS304/316
Function: Bottle Washing Filling Capping Capacity: 15000-20000BPH



Fast Delivery 3-In-1 Orange Juice Pet Bottle Hot Filling Machine / Line





9.18kw





Specifications:



1. PLC control+touch screen



2. Hot filling machine,



3. Suitable for plastic / pet bottle,round / flat  bottle





Brief introduction:



This type machine is mainly used in filling and packing juice, tea, wine, soy, stc.



The machine is divided into 3 parts:bottle washing, juice filling, capping.



Bottle washing - The clamps hold the bottle neck and turn bottles along the guide rail.



Juice filling - After pulp filling, the bottles enter the juice filling position. Then the grippers hold the bottle



neck and start to fill juice.



Capping - When bottles enter capping position the sensor will send the signal and the caps will be fed by



air cylinder. The capping process will begin.



Hot filling- adopts clip bottle neck suspension process design, and uses the filling valve lifting, can



satisfy the requirement of a 95℃ hot filling technology.When tank liquid level is low, the liquid input valve



will open and start to input liquid automatically.



Reflux tank system has the function of supplying the material automatically.



Perfect filling temperature control system.



Sanitary filling head system is of umbrella structure, high filling speed.





Technique parameter



Model RCGF40-40-12
Productivity 15000-20000BPH
Rinsing Head 40
Filling Head 40
Capping Head 12
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h
Rinsing Water Consumption 0.5 m3/h
Motor Power 9.18kW
Voltage 380V
Dimension

(L*W*H)

3600*2800*3150mm

Weight 5000kg
Filling Principle Gravity Filling



Details image of Capping part



Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment



Pure water rinsing tank



Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment

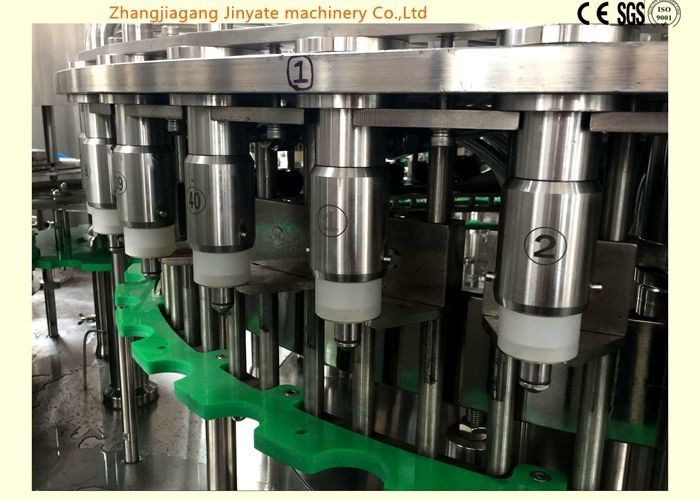

Filling and capping



Orange Juice Pet Bottle Filling Machine , SUS304 / 316 Beverage Bottling Equipment



Our advantage



We are Professional bevrage filling machine manufacturer for more than 10 years:



1. Focus on beverage and cosmetics packing machines



2. Exported to over 20 countries with good reputation



3. 7 years Alibaba Golden supplier without complain



4. All the machines designed by CAD



5. Electrical parts from world famous suppliers,such as:MITSUBISHI,AIRTAC,OMRON



6. high quality stainless steel, processed by CNC
