33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve

33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve
33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve 33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve 33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve

Large Image :  33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: RCGF32-32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product: Juice Filling Machine Filling Material: Juice,water, Vinegar,still Beverage
Filling Temperature: >70 Degree Filling Heads: 32
Capaicty: 13000BPH Control: PLC+Touch Screen
High Light:

33CL hot liquid filling machine

,

constant torque hot liquid filling machine

,

33CL hot sauce filling machine

Full Auto 33cl Juice Hot Filling Packaging Machine/ Fruit Juice Making Plant



Product Description

1. Introduction of Juice and Tea Beverage
Juices and teas are one of the fastest growing beverage segments worldwide, with healthier lifestyles, urbanisation and improved retail infrastructure all driving this development.
2. Introduction of Juice Filling Machine
>> It adopts technology of air conveyor direct connect with bottle infeed starwheel instead of screw and conveyor. It is easier and more simple to change over bottle size.

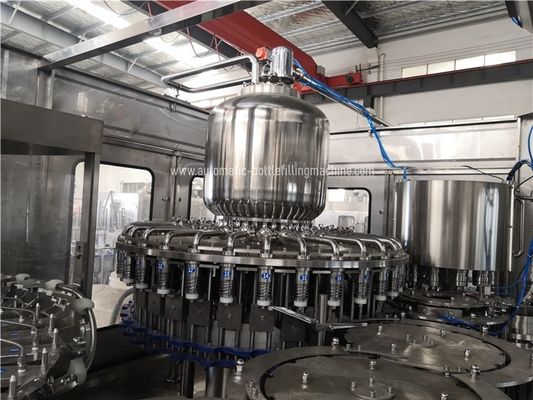

>> It adopts high precision, high speed and quantitative filling valve, and the liquid level is accurate without liquid loss to ensure excellent filling quality.
>> The capping head adopts constant torque device to ensure the sealing quality.
>> The sorting system is efficient, with perfect cap feeding and protection device.
>> It is simple and convenient to change bottle type. It only needs to replace the bottle star wheel can be realized without adjusting the height of equipment.
>> The filling system adopts neck handling technology to avoid the secondary pollution of the bottle mouth.
>> Control system has the functions of automatic control of the water level, lack of cap detection, self stop of washing bottle and output counting and others.
>> The bottle washing system uses the efficient cleaning spray nozzle produced by American spray company technology, which can be cleaned in every place of the bottle.

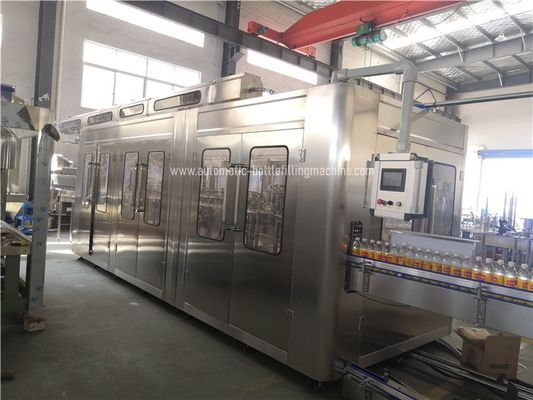

This is disinfection rinsing-pure water rinsing-hot filling-capping 4 in 1 machine
33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve 0

33CL Hot Liquid Sauce Filling Machine 32 Heads Quantitative Filling Valve 1

The all parts of RELIABLE juice filling machine
No
Product Name
Remark
1
Air conveyor with one fan
2M For Free
2
3 in 1 main machine
Washing Filling Capping
3
Recirculation tank
SUS 304
4
Flat conveyor with one motor
2M For Free
5
Cap sterilizer& loader
Full Automatic (High configuration)
6
Light checker
Free





JINYATE Sales Service

Before Sales
1.Answer your any question on us within 24 hours.
2.Supply all information you required.
3.Machines video for reference
4.Welcome to visit factory

On Sales
1.Update production progress each week
2.Sending machines pictures on production
3.Machines testing running over 8 hours, and sending testing videos

After Sales
1.engineer arranged to install machines
2.Spare Parts provided
