Gravity CSD Soft Drink Carbonated Drink Filling Machine

Gravity CSD Soft Drink Carbonated Drink Filling Machine
Gravity CSD Soft Drink Carbonated Drink Filling Machine

Large Image :  Gravity CSD Soft Drink Carbonated Drink Filling Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: DCGF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Carbonated Drink Filling Machine Function: Rinser Filler Capper
FIlling Heads: 24 Capacity: 6000 Bottles Per Hour
Bottle Size: 200-2000ml PET Bottle Machine Material: Stainless Steel SUS304
Filling Material: Soda, Soft Drink, Fizzy Drink, Carbonated Juice Control: PLC+HMI+INVERTER
High Light:

Gravity carbonated beverage filling machine

,

CSD soft drink filling machine

,

CSD carbonated beverage filling machine

CSD Carbonated Beverage PET Bottle Cold soft Drink Cola Soda Flling Machine

Gravity CSD Soft Drink Carbonated Drink Filling Machine 0



Features:

This washing filling capping machine is mainly used for carbon dioxide drink, such as cola, soda water, soft drink, sparkling water, energy drink, beer and so on. The machine design is shorten the time for the drink material contact with outside, increase the sanitation condition throughout economy benefit.

The available capacity is from 1000 bottles per hour to 24000BPH.



1. This kind of carbonated beverage filling machine combines washing,filling and rotary capping functions in one unit.It is a fully automatic and high efficiency liquid packing equipment. 2. carbonated beverage filling machine is suitable for packing beverage containing gas. carbonated beverage filling machine 's performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.

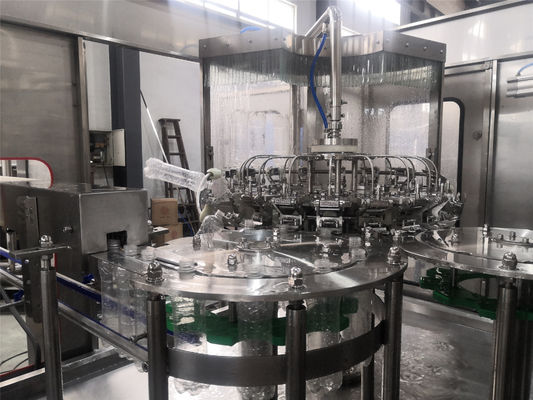

Washing part

Rotary type bottle washing machine, mainly used to wash bottles for drinking water and other beverage. New bottles go into the machine through air conveyor. Bottles are held by grips and turned over onto washing heads. After washing and drain water, bottles go into filling parts by star wheel. Main structure, protect shell and contact water part of washing part are all stainless steel.

Gravity CSD Soft Drink Carbonated Drink Filling Machine 1

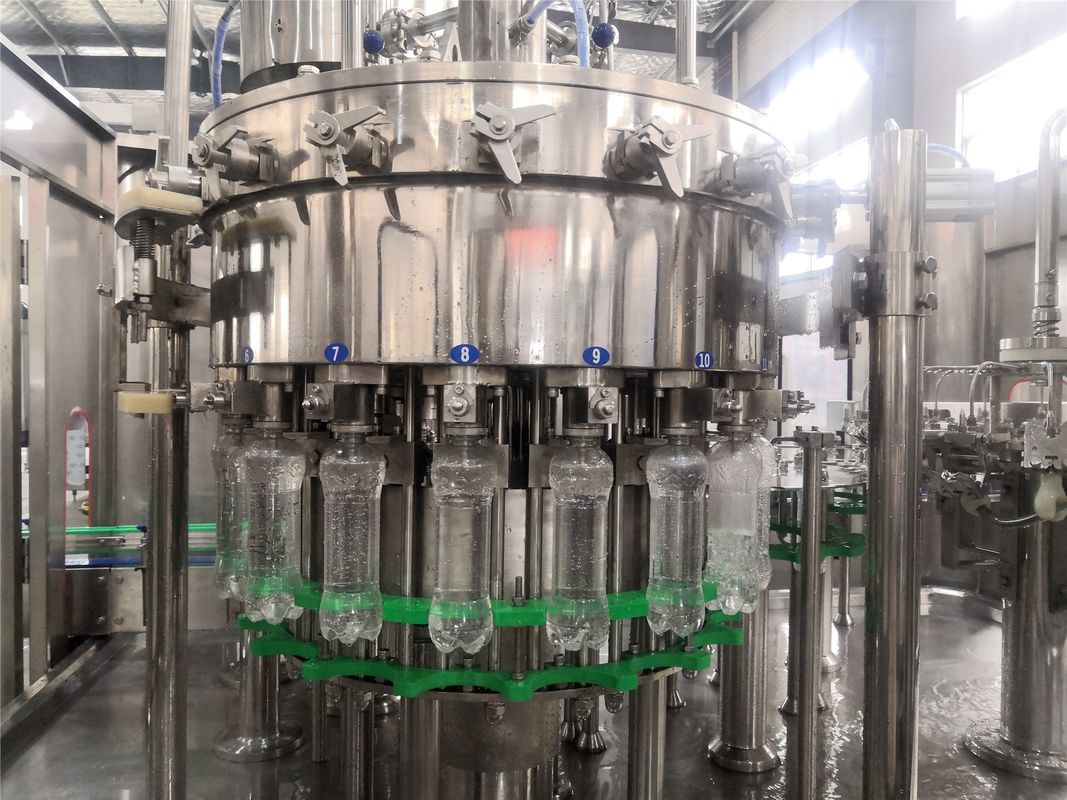

Filling part
Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable.

Gravity CSD Soft Drink Carbonated Drink Filling Machine 2

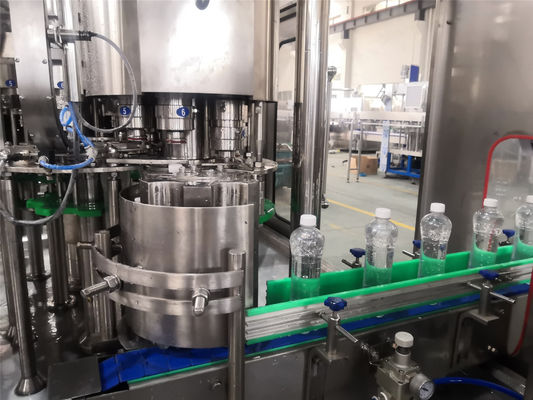

Capping part
Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. At the cap output, there is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspected by sensor, capping machine control the cap conveyor. The machine will stop when no caps.
Gravity CSD Soft Drink Carbonated Drink Filling Machine 3
Technical Parameters
Model DCGF12-12-5 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Capacity(500ml)(B/H) 2000-3000 3000-5000 5000-7000 7000-10000 10000-15000
Filling precision <=+5(liquid level)
Filling pressure <=0.4Mpa
Bottle height 160-320mm
PET bottle specification Bottle diameter 50-115mm,Height160-320mm
Suitable cap shape Plastic screw cap or crown cap
Total power 4.4 5.2 6.2 6.2 7.5
Overall dimensions 2250*1650*2250 2600*1965*2250 2980*2200*2250 3880*2200*2250 4000*2250*2500
Weight(kg) 2500 3500 4500 6000 7200
You also can customize the size according to your requirement,here is only part of sample.





We can provide complete line plants:

Gravity CSD Soft Drink Carbonated Drink Filling Machine 4







THE AFTER-SALE SERVICE OF KING MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
