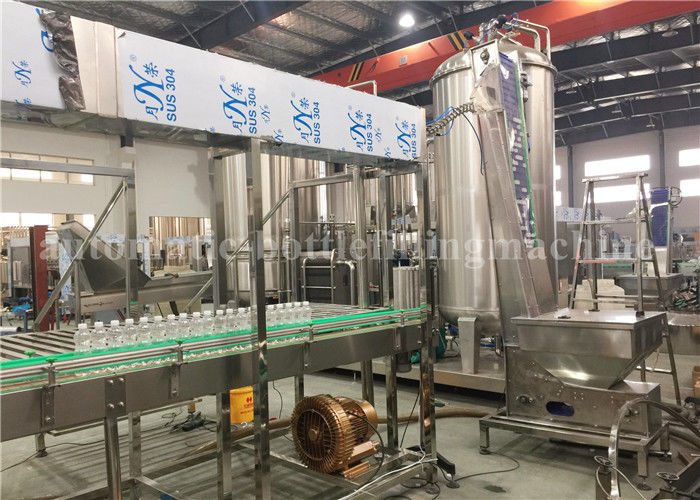

SUS304 Beverage Carbonated Drink Filling Machine 500ml

SUS304 Beverage Carbonated Drink Filling Machine  500ml
SUS304 Beverage Carbonated Drink Filling Machine  500ml

Large Image :  SUS304 Beverage Carbonated Drink Filling Machine 500ml

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Dimension(L*W*H): 3600*2200*2600mm Power: 8.07kw
Control: PLC+Touch Screen Filling Pressure: Balanced Pressure Filling
Filling Material: Gas Contained Beverage Capacity: 8000-1000BPH(500ml )
Factory Location: 2 Hours From Shanghai Operation: Easy And Stable
High Light:

SUS304 carbonated drink filling machine

,

500ml carbonated drink filling machine

,

500ml carbonated drink filling line





SS304 Carbonated Beverage Bottle Filling Machine Soft Drinks Cola Bottling Plant



Description

DGCF seires soft drink filling machine,integrating with washing,filling and capping part,it realizes full automation in the whole process,suitable for polyester bottle and plastic bottle filling of carbonated beverage,like:soda,cola and so on.The bottle types applicable for various parts are easily,conveniently and rapidly adjustable.It adopts new pressure filling.Compared with the machines of the same specification,the capacity of this machine is larger.



Features

1. DGCF32-32-10 use move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
4. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
5. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
6. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
7. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
8. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
9. Adopting clamping bottle neck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottle neck way in the whole conveying process. When bottle type changes,you only need to change the board related with bottle diameter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.



Technique parameter

Model: DCGF16-12-6 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Production Capacity(500ml)(B/H) 2000-4000 4000-6000 6000-8000 8000-10000 10000-12000
Bottle standard (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Suitable Cap shape

Plastic srew cap



Filling precision

≤±5mm



Filling pressure(Mpa) <0.4
Water pressure of Washing bottle(Mpa) 0.18-0.25
Water consumption for water bottle(kg/h) 1300 2000 2500 3000 3000
Spraying Position 5 5 6 12 12
Dripping Bottle Position 2.5 3.0 3.5 7 7
Gas source Pressure(Mpa) 0.4
Gas consumption(m³/min) 0.3 0.4 0.4 0.5 0.5
Total power(kw) 5.03 5.03 6.57 8.07 8.07
Overall size:(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600
Weight: (kg) 2000 3000 4000 5000

5000
