| Warranty: | One Year For Free | Control System: | PLC+touch Screen |
|---|---|---|---|
| Atumatic Grade: | Fully-automatic | Power: | 6.57kw |
| Bottle Type: | Pet / Plastic Bottle | Voltage: | 380V/50Hz |
| Weight: | 5500kg | Dimension(L*W*H): | 2750*2180*2200mm |
| High Light: | 6.57kw Mineral Water Filling Machine,800kg / h automatic bottle filling system |
||

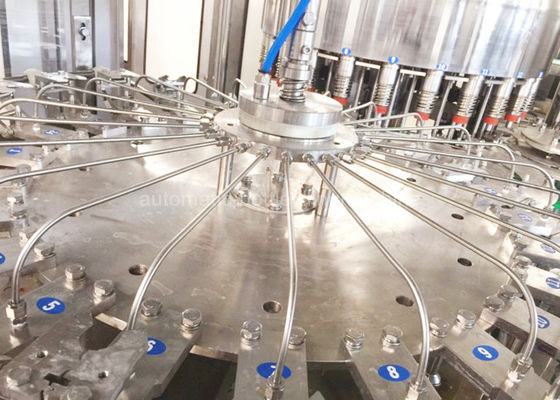

Mineral Water Automatic Bottle Filling Machine , 24 Heads Drinking Water Filling Packaging Machine
Our Automatic CGFSeries Water Bottle Filling Machine:
It integrates bottle rinser,filler,capper three functions into one Unit.It is widely used for bottled Mineral water,pure water,drinking water and other non-gas beverage machinery.
It is suitable for 100-2000ml PET/Plastic Bottle(All the bottle mouth diameter must be same).It can fill 2000-20000 bottles per hour.
Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc.The quality of the equipments reaches the international advanced level.
Technical parameter
| Model | CGF24-24-8 |
| Production capacity(500ml)(b/h) | 8000-10000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | normal pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 6.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 2750*2180*2200mm |
1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.
3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water
4) Covering of bottle clamps and elevator are product of IGUS
5) The rinse is driven by driving system positioned inside machine frame via gear transmission.
1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
6) Hydraulic pump is float-ball controlled.
7) The filler is driven by driving system positioned inside machine frame via gear transmission
1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine is important to running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
4) Highly effective acentric way for cap sorting to reduce the abrasion.
5) It has the check-up device to control the cover lift.
