30000BPH 3 In1 Drinking Water Filling And Capping Machine

large.img.alt
large.img.alt

Large Image :  30000BPH 3 In1 Drinking Water Filling And Capping Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: CGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Water Filling Machine Filling Material: Mineral Water, Purification Water
Function: Rinser Filler Capper Capacity: 2000-30000 Bottle Per Hour
Suitable Bottle: 200-2000ml Control: PLC+inverter+HIM
High Light:

30000BPH water filling and capping machine

,

30000BPH drinking water filling machine

,

30000BPH mineral water bottling machine

Automatic Bottle Water Filling Machine, 3 In1 Production Line, Bottling Plants



Description

  • CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.
  • Different models can satisfy various requirement of output from 2000BPH to 36000BPH.
  • The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
  • Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.
  • The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.
  • The photoelectric sensor detect all part running state, with high degree of automation, easy operation.



we have many different capacities, please check what you need

Model
CGF8-8-3
CGF16-12-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Capacity
3000PBH(500ML)
4000PBH
(500ML)
6000PBH
(500ML)
10000PBH
(500ML)
14000PBH
(500ML)
18000PBH
(500ML)
Washing heads
8
14
16
24
32
40
Filling heads
8
12
16
24
32
40
Capping heads
3
5
6
6
8
10
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
1500kg
2000kg
4000kg
4500kg
6000kg
7800kg
Main motor power
1.2kw
1.5kw
3kw
5kw
7kw
10KW

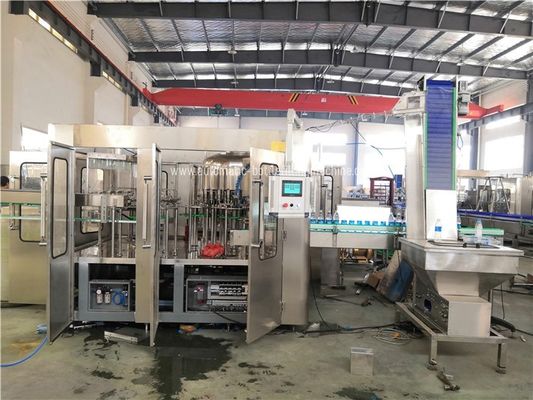

30000BPH 3 In1 Drinking Water Filling And Capping Machine 0

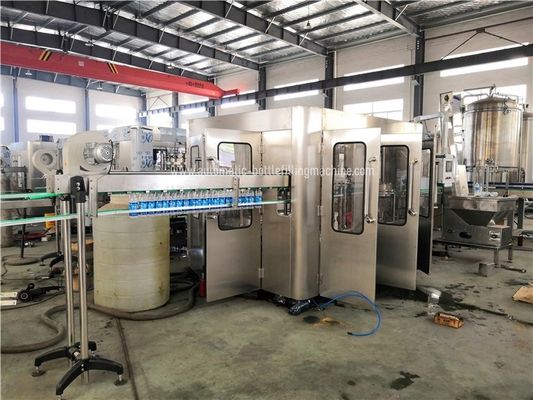

30000BPH 3 In1 Drinking Water Filling And Capping Machine 1

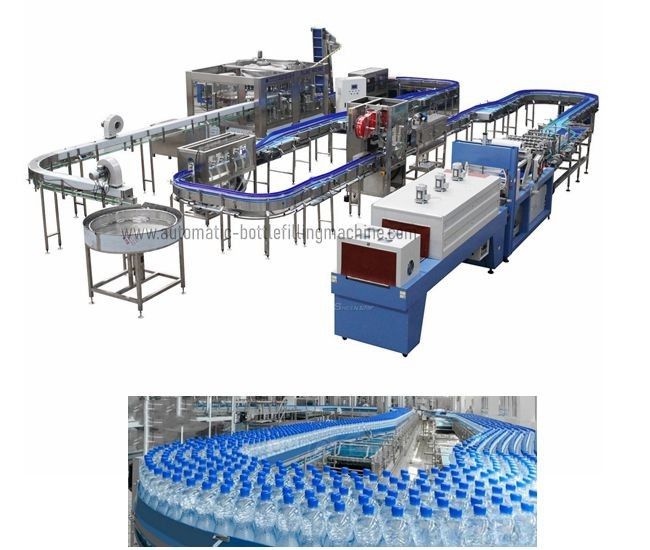

We can provide the complete line plants, from A to Z:

30000BPH 3 In1 Drinking Water Filling And Capping Machine 2

FAQ

Q1:Do you have any reference project?

A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years. Q3: Do you provide customized service?

A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.

Q4:When can I get my machine after I paid?

A4:We will deliver the machines on time as the date we agreed both side.

Q5:How can I install my machine when it arrives?

A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
