Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment

Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment
Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment

Large Image :  Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 35 working days
Supply Ability: 100 sets per yesr
Detailed Product Description
Name: Can Seamer Suitable Can: Aluminum Cap, Tin Can, PET Can
Capacity: 2000BPH Material: Stainless Steel SUS304
Voltage: 380V 50HZ 3Phases Warranty: 1 Year
High Light:

aluminum can filling machine

,

beverage canning machine



Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment



Machine characteristics:

Technical features of cans and cans: The cans are mainly used for the sealing of tin cans, aluminum alloys, plastics and other cans. It has the automatic stop device with cans without cover, no cans without cover, in and out cans and other faults. It is the ideal equipment for canned food factory, beverage factory and winery sealing. The cover portion seals the lid to the jar that has been filled with the product and is transported by the conveyor chain to the subsequent process. The sealing roller is quenched with high hardness alloy (hrc>62), and the sealing curve is precision machined by optical curve grinding to ensure the quality of the sealing and ensure the normal operation of the machine. This machine has a can bottom cover, no cans and no cover control system to ensure the normal operation of the machine and reduce the cover loss rate. The aluminum cover is manually placed in the chute by the cover gravity and the thruster for the lower cover, and the detection switch is installed in the chute to ensure that the cover can be stopped when the cover is missing. According to the tank type of different heights, the capping machine can be manually raised and lowered to meet the requirements.



canning machine tin can seamer

1. Flow chart of hig speed tin can filling machine

Empty can depalletizer-----Washer-----Filler seamer-----Inverter------Date printer


2. Technical parameter of hig speed tin can filling machine


this machiney is designed for juice, soft drink, beer cola soda etc.


Model of hig speed tin can filling machine



Technical parameter

Model DDJX-150 wholesale high quality continuous automatic aluminum can Seaming equipment /PET can sealing machine /can seamer
Can diameter 30-66mm
Can height 55-165mm
Power 0.75KW
Capacity 30-50times/min
Size 930*700*1850mm
Weight 500kg

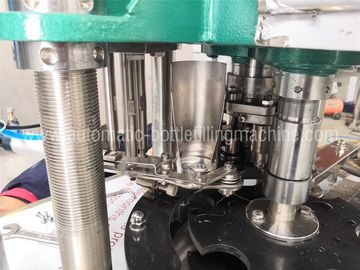

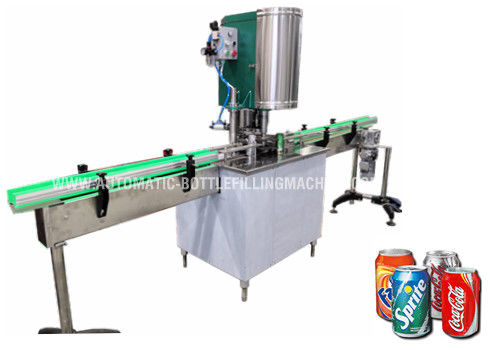

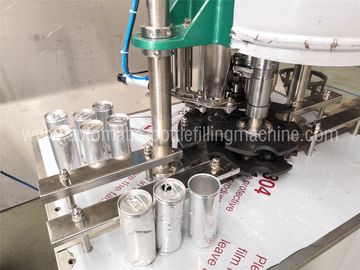

Machine picture show

Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment 0



Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment 1



Full Automatic Alumunim Can Seaming Machine , PET Tin Can Seamer Equipment 2



We can supply complete line plants, you are welcome to  inquie... ...
