Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise

China Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise supplier
Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise supplier Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise supplier Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise supplier Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise supplier

Large Image :  Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise

Product Details:

Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: BCGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Pls inquire
Packaging Details: standard wooden case
Delivery Time: 50 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Glass Bottle Filling Machine Filling Material: Juice, Flavor Drink, Nectar, Wine
Capacity: 6000BPH Suitable Bottle: Glass Bottle
Suitable Cap: Twist-off Cap, Screw Cap Material: Stainless Steel SUS304



Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise



Brief introduction

  • This product is a three-in-one filling machine, which integrates washing, filling and capping.
  • Suitable for the production of glass bottled fruit juice, tea beverage, water and other non-gassy beverages.
  • The output is 6000-10000 (500ml) bottles/hour, and the speed is adjustable.
  •

Machine character

< Bottle washing clamp >

Stainsteel tube, bottle washing clamp isometric design.
Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second contamination.

< Filling valve >

High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

< Gland device >

Capping head have itself scale. Easier adjust and count.



Technical parameter

Model BCGF18-18-6
Rinsing filling capping heads number 18, 18, 6
capacity 6000BPH (500ml), speed is adjustable
Filling material Juice, tea drink, grape wine, red wine, liquor and other non-gas liquid
Glass bottle volume 0.3L-2L
Glass bottle diameter Φ50-108mm
Glass bottle height 170-320mm
Suitable Twist-off cap, crown cap, aluminum rotary cap, ring-pull cap
Filling precision ±2-3%
Filling method Gravity ambient filling or hot filling

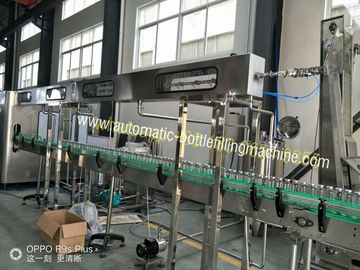

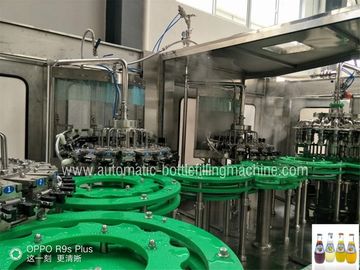

Machine show

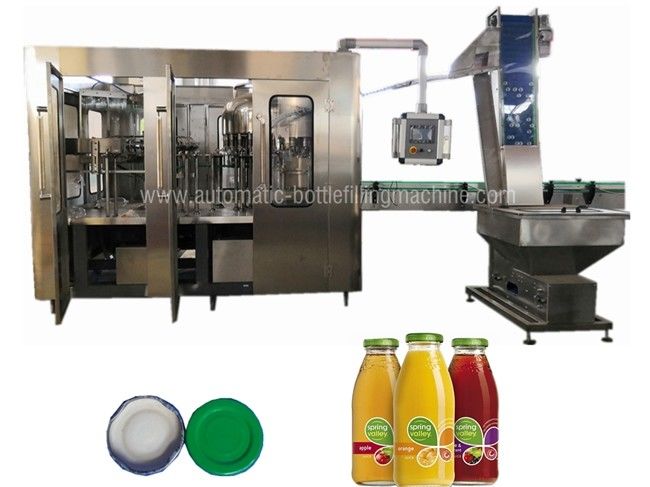

This machine is customized by our client, which is a 5 in 1 monobloc, three rinsers one filler and one capper.

Pls click the picture to watch the video.

Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise







Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise



Ss Glass Bottle Filling Machine Automatic Industrial Juice Making Machine Low Noise



FAQ

Q1:Are you manufacturer or trading company ?

A1: We are industrial manufacturer, which locates in Zhangjiagang city over 10years , and begin to export our machines and provides oversea installation services since 2010 .

Q2:How can we get your suitable machines / production line ?

1. Let me know what kind of products will you produce ?

2. Let me knw what is the capacity(per hour) you want ?

3. Let me know what kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details

Q3: Where is your factory?

A3: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

Q4: Do you have any technical supports with your Beverage Filling Machines?

A4: Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
