Monoblock 5.03KW Beer Bottle Filling Machine For Carbonated Beverage

Monoblock 5.03KW Beer Bottle Filling Machine For Carbonated Beverage
Monoblock 5.03KW Beer Bottle Filling Machine For Carbonated Beverage

Large Image :  Monoblock 5.03KW Beer Bottle Filling Machine For Carbonated Beverage

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF16-12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Capacity: 2000BPH(500ml)
Filling Pressure: Balanced Pressure Power: 5.03KW
Dimension(L*W*H): 2100*1500*2200mm Voltage: 380V/50Hz
Weight: 2000kg
High Light:

Monoblock Beer Bottle Filling Machine

,

5.03KW Beer Bottle Filling Machine

,

5.03KW glass bottle soda filling machine

Glass Bottle Soda Filling Machine , Beer Bottle Filling Machine Monoblock




Product Application

This Carbonated Beverage Filling Machine Combined Washing-filling-capping in 1 unit. It is used to produce glass bottled carbonated beverage. such as the cola / beer / Sprite and related aerated beverage. The DGCF Wash-filling-capping 3-in-1unit Machinery can finish all the process rinsing filling and capping in one unit, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


Detailed description:

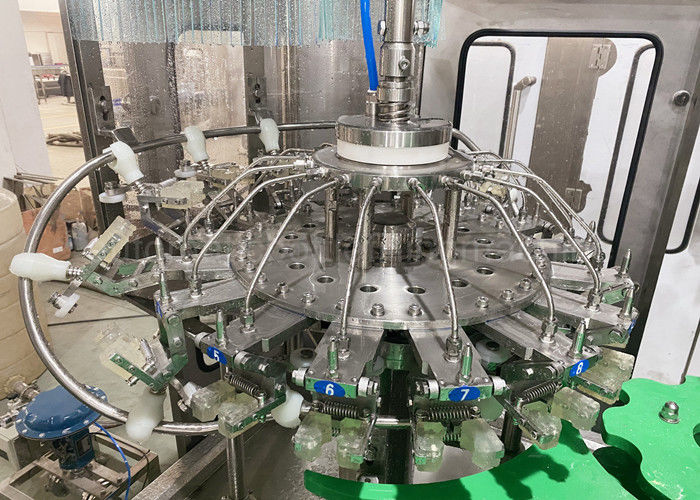

Rinsing part
1.Rotary rinser: applicable for wine, beverage and water cleaning.
2.The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held upwords, after aseptic water rinsing, the bottle neck goes up and transported to another process.
3.The rinsing contact part and out cover adopt the stainless steel material
4.Open design gear driving

Filling part
1.Adopt the German technology, utilize the isobaric filling principle design, achieve to fill the cleaned bottle
2.Adopt isobaric mechnical valve ,fast filling with high precision filling level.
3.Adopt the guiding pole with cover function ;bottle held elevation desgin , ensures the complete seal between bottle neck and filling valve ,avoids the leakage.
4.Equip with the anti break device ;bottle break cleaning ,avoiding the next botte .
5.Equip with complete CIP cleaning function

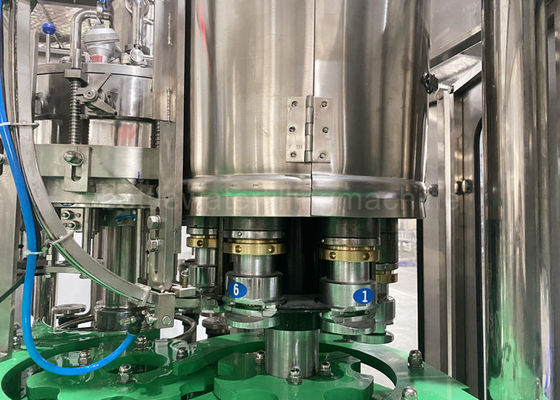

Capping part
1.Cappig part :sorted cap is capped on the filled bottle ,and then transported to the next step.
2.Capper rotates through the speed reducer machine .The cap leaves the hopper under the centrifugal function .The exit is equipped with the cap reverce dvice ,when the reverce cap comes ,it is changed to the right direction ;the cap quantity is controlled by the photoelectric switch ,ensures the caping falling effect.
3.If the container has the cap ,the second cap cannot go in ,which utilizes the cap .
4.And it is equipped with photo eletric swith on the slding trail ,when it tests that there is no cap ,it stops automatically

Cap elevator
It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.


Main parameter:

ModelDCGF16-12-6
Theoretical Capacity2000BPH for 0.5L glass bottle
Rinsing heads quantity16 pieces
Filling heads quantity12 pieces
Capping heads quantity6 pieces
Filling precision≤±5mm
Volume of glass bottle0.25L-2L
Diameter of bottle50-100mm
Height of bottle150-320mm
Cap diameterAluminum screw type cap diameter from 28mm to 38mm
Water pressure of washing bottle0.18-0.25Mpa
Water consumption for water bottle2500kg/h
Spraying position5
Dripping bottle position2.5
Gas source pressure0.4Mpa
Gas consumption0.3m³/min
Power5.03kw
Weight2000kg
Dimension(L×W×H)2100*1500*2200mm
