Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line

Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line
Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line

Large Image :  Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 45 working days
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Glass Bottle Filling Machine Filling Material: Carbonated Drink, Soda Water, Cola
Bottle Type: Glass Bottle Cap Type: Aluminium Rotary Cap
Speed: 500-24000BPH Material: Stainless Steel SUS304
High Light:

glass bottling equipment

,

glass bottle filling and capping machine

This machine is used to produce carbonated soft drink, like cola, soda water, energy drink, etc.

It's for glass bottle aluminium rotary cap package, the filling cylinder can lift automaticlly only need to set on the touch screen according to diffirent bottle height.





Water purification system >> Blending system >> Rinsing filling sealing machine >> Labeling and packing machine

Here we mainly to introduce auto rinsing filling sealing machine, it is the main system in the plant.

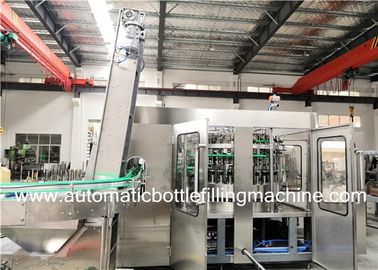

Machine picture

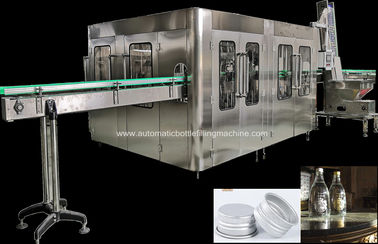

Washing parts: SUS 304, compact structure, convient adjustment, small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently, equipped with water collector to callback rinsed water.



Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line 0

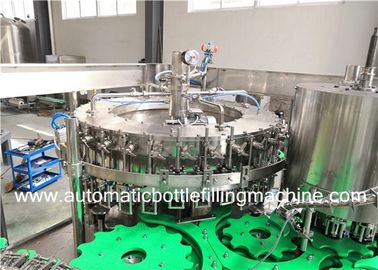

Filling parts: equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The machine obtains advantage of high reliability, high efficiency, high degree automation and easy operation.



Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line 1

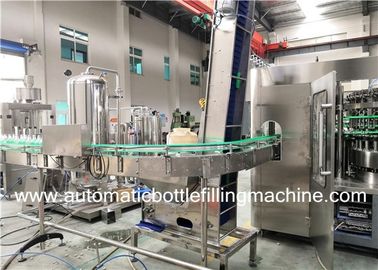

Capping parts: Aluminum screw cap or Crown cap, etc. It is optional according to customers request. Different cap use different capping head.



Automatic Glass Bottle Filling Machine , Sparkling Mineral Water Production Line / Bottling Line 2





Machine specification

Mode BCGF16-12-6 BCGF18-18-6 BCGF24-24-8 BCGF32-32-10 BCGF40-40-10
Capacity (500ml) 1000-1500 2000-4000 4000-6000 6000-9000 8000-11000
Total power(kw) 1.5 1.5 3.75 5.6 7.5
Dimension(L*W*H) (mm) 2100*1900*2300 2400*1920*2300 2850*2250*2400 4100*2250*2400 4800*2250*2400
Total weight(kg) 3000 4500 6000 8500 10000



Special size can be customized, Just feel free tell us your requirements



---After Sales Service

1. Find our products through http://yufengjx.en.alibaba.com/

2. One year warranty for the whole system

3. Free equipment installation and debugging

4. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

5. Every 3 years, we can help to overhaul the machine free (Labor)

6. We can provide internship service and help you train the operator and mechanic

7. Free production technology and process configuration

8. We can help you to design the production line, workshop and provide turn-key project
