SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line

China SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line supplier
SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line supplier SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line supplier SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line supplier SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line supplier SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line supplier

Large Image :  SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-18-18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Driven Type: Electric Warranty: One Year For Free
Structure: Rotary Type Weight: 6000kg
Bottle Type: Glass Bottle Filling Temperature: Hot Filling
Capacity: 2000-3000BPH(500ML) Color: Silver Gray

SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line


Specific information
1. This 5-in-1 unit machine is suitable for glass bottle
2. Capacity:2000-3000 bottles per hour
3. Hot filling machine with back-flow system
4. It can be used for filling juice,milk,tea,water,non-gas contained beverage.

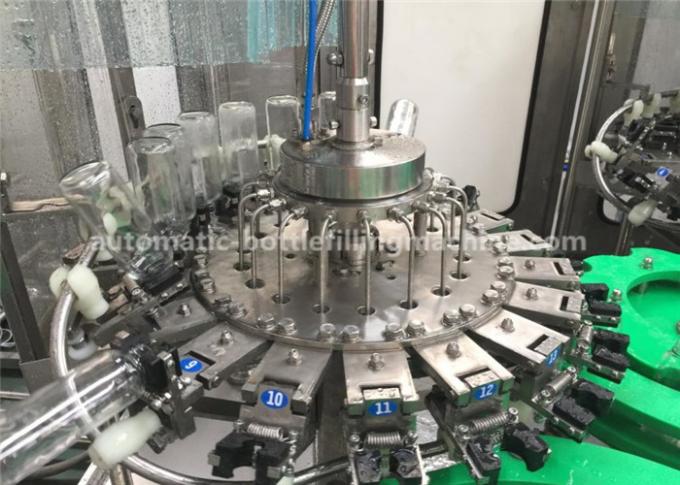

Rinsing(disinfectant,pure water): grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Sterilzing:use a steam generator to provide the steam,the steam sterilzing part is isolated,It also use a cap sterilizer to sterilzing the caps.

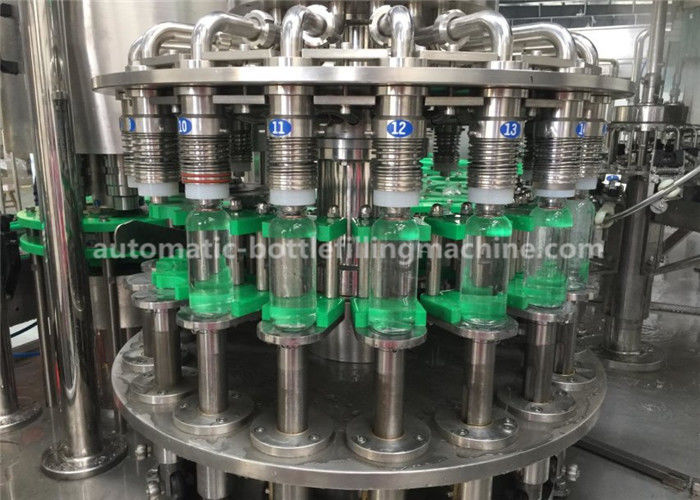

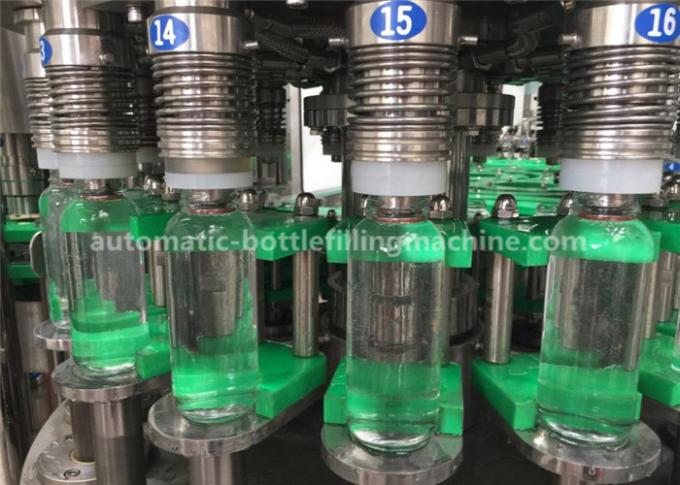

Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine is my company's advanced technology development.It is customized according to our customer's special requirements. It intergrates washing by disinfectant,washing by pure water,sterilizing by steam,filling and capping in one unit machine.It also have beautiful overall appearance and excellent mechanical operation functions.

Video show

Features

1) The machine has compact structure, complete control system, easy operation and high degree of automation
2) To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate
3) The parts contacting media are made from 304and have no process blind angles to enable easy cleaning
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting
7) The machine applies a highly effective cap arranging system that has complete self control and protective device
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively
9) Main electric components and pneumatic components apply world famous brand products
10) The machine's operation is controlled by an advanced touch-screen that can

Technique parameter

ModelRCGF18-18-18-18-6
Productivity2000-3000BPH
Rinsing Head(disinfectant)18
Rinsing Head(pure water)18
Sterilizing by steam18
Filling Head18
Capping Head6
Bottle Volume350ml~2000ml±10ml
Bottle Diameterφ50-92mm
Bottle Height150-310 mm
Filling Tolerance±2%
Cap Size28mm and 30mm Aluminum Standard Caps
Air Pressure0.6MPa
Air Consumption500 L/min
Gas Consumption0.4 m3/min
Motor Power9.68kW
Voltage380V
Dimension(L×W×H) 2950*1800*2200mm
Weight6000kg
Filling PrincipleGravity Filling


SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line

SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line

SS304 Juice Production Machine For Beverage Filling Equipment Plant / Line
