Fully Automatic Plastic Bottle Blowing Machine With PLC Control

China Fully Automatic Plastic Bottle Blowing Machine With PLC Control supplier
Fully Automatic Plastic Bottle Blowing Machine With PLC Control supplier Fully Automatic Plastic Bottle Blowing Machine With PLC Control supplier Fully Automatic Plastic Bottle Blowing Machine With PLC Control supplier Fully Automatic Plastic Bottle Blowing Machine With PLC Control supplier Fully Automatic Plastic Bottle Blowing Machine With PLC Control supplier

Large Image :  Fully Automatic Plastic Bottle Blowing Machine With PLC Control

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: HY-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Bottle Blowing Machine Automatic Grade: Fully-automatic
Packaging Material: Paper, Plastic, Wood Bottle Volume: 50-2000ml
Cavity: 3 Capacity: 3000BPH(500ml)
Dimension: 3.12x1.85x2.03m Weight: 3500kg

Fully Automatic HY-3000 Plastic Bottle Blowing Machine With PLC Control



DESCRIPTION

HY-3000 is the fastest liner blow molding machine in mainland of China by now. HY-3000 reaches around 3000BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.

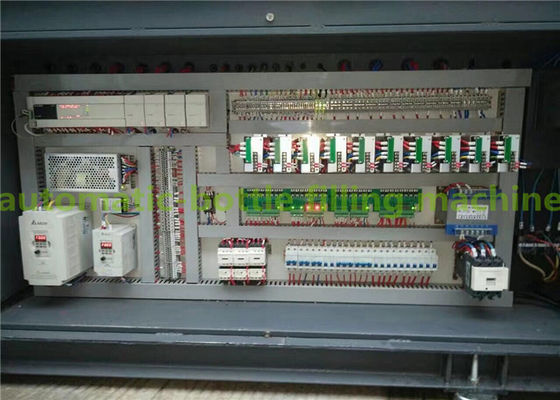

HY-3000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-3000 consists of three main parts: preform loading system, Heater channel & blow station.



MACHINE FEATURES

1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .

2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater

3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

5. No contamination and low noise with the air cylinder to drive the action instead of the oil

pump.

6. Air route design is divide into two parts ,

7. Ideal effect of the chilling with the chilling system

8. Low rejection rate: less than 0.3percent



Main parameter

Container Max Volume L 2
Max Neck Diameter mm 38
Max Container Diameter mm 105
Max Container Height mm 335
Cavity   3
Theoretical Output bph 3000(*)
Electrical Clamping force KN 300
Heating Power Kw 32
Max Heating Power Kw 45
Air Compressor Operating Pressure Mpa 0.7
Low Pressure Consuming L/min 1400
Blowing Pressure Mpa 3.0
High Pressure Consuming L/min 2400-3600(**)
Chiller Pressure Mpa 0.3-0.5
Temperature 10-12
Flow Rate L/min 30
Machine Machine Size m 3.12x1.85x2.03
Machine Weight Kg 3500

(**)Depending on bottle size, shape and weight.

(*)Depending on bottle size and operation conditions.



Main supplier of components

PARTS
NAME BRAND ORIGIN
CLAMPING CYLINDER AIRTAC TAIWAN
MOVING CYLINDER FESTO GEMANY
STRETCHING CYLINDER FESTO GEMANY
SOLENOID VALVE FESTO GEMANY
PLC MITSUBISHI JAPAN
PROXIMITY SWITCH OMRON JAPAN
PHOTOELECTRIC SWITCH OMRON JAPAN
MAGNETIC SWITCH FESTO GEMANY
ROTATING MOTOR TUNGLEE TAIWAN
TRAP FESTO GEMANY
CLAMPING SOLENOID VALVE ARK KOREAN
STRETCHING SOLENOID VALVE FESTO GEMANY
CHECK VALVE FESTO GEMANY
ONE-WAY REGULARING VALVE PARKER AMERICA
CONTACTOR SCHNEIDER FRANCE



Fully Automatic Plastic Bottle Blowing Machine With PLC Control

Fully Automatic Plastic Bottle Blowing Machine With PLC Control

Fully Automatic Plastic Bottle Blowing Machine With PLC Control
