Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance

China Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance supplier
Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance supplier Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance supplier Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance supplier Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance supplier

Large Image :  Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: HY-B-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Bottle Blowing Machine Packaging Material: Paper, Plastic, Wood
Capacity: 800-1000BPH Working Pressure: 0.8-1.0Mpa
Power: 1kw Voltage: 220V
Weight: 260kg Body Diameter (max): 125mm



Stably Semi-Automatic Pet / Plastic Bottle Mould Blowing Machine



260kg





Features of main body:


1). Stable performance with advanced PLC.


2). Automatic preform conveyer to save human cost.


3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which



improve the bottle shaping rate, increase the production.


4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area



in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the



proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the



production into a perfect safe environment, in case of the breakdown in certain procedure.


6). Introduce the FESTO air cylinder to avoid contamination and noise.


7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the



blowing and action into three parts in the air pressure diagram of the machine.


8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: Automatic and manual.


10). Safereliable and unique design of the position of valve to make the pneumatic diagram in the



machine easier to understand.


11). Low costhigh efficiency easy operation and maintenance etc, profited from the fully automatic



technological process.


12). Ideal cooling system make the finished bottles without any flaws.


13). Easy for you to install test and start up.


14). Low rejection rate: Less than 0.2 percent





Technical parameter



Name Item Unit Details
Blowing machine Dimension mm 1500*600*1750mm
Bottle volume (max) ml 2000
Bottle volume (min) ml 50
Bottle Neck Diameter (max) mm 40
Bottle Neck Diameter (min) mm 18
Body Diameter (max) mm 125
Body Height( max) mm 420
Number of Cavities mold 2
Production output pcs/h 800-1000BPH
Clamping force T 5.7(56KN)
Mold thickness mm 200(max)
Mold width mm 360x390
Space between Tie-bars mm 120-220
Diameter of Tie-bars mm 63
Scope of Tie-bars mm 405
Mold stroke mm 160
Stretching stroke (max) mm 420
Working pressure Mpa 0.8-1.0Mpa
Blowing pressure Mpa 2.0-3.0Mpa
Voltage/Power V/KW 220V/1KW

Pre-heater



Dimension mm 1870*630*1450mm
Weight kg 260
Voltage/Power V/KW 380V/14KW

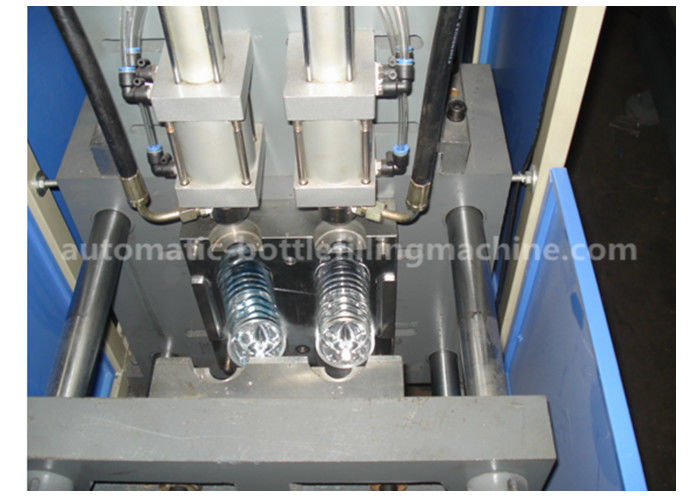

HY-B-I 2-cavity semi-automatic bottle blowing molding machine



Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance



Bottle samples



Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance



Blowing mold(500ml)



Large Capacity Plastic Blow Moulding Machine 800 - 1000BPH Stable Performance
