Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V

China Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V supplier
Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V supplier Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V supplier Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V supplier Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V supplier Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V supplier

Large Image :  Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Filling Temperature: Hot Filling Driven Type: Electric Type
Weight: 2000KG Overall Dimension: 1800*1200*2150mm
Power: 5.88kw Processing Type: Water,juice,tea,milk,non-carbonated Beverage
Capacity: 3000BPH(500ml) Bottle Material: Glass Bottle

Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid



General description
3-in-1 glass bottle juice packing machine with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Main features
1. Bottle infeed
1) Bottle infeed by combination of infeed starwheels.
2) Equipped with bottle jam protection device.



2. Rinser
1) Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
2) Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.



3. Transfer starwheel
1) Made of stainless steel of superior quality.
2) Equipped with bottle jam protection device.
3) Our automatic juice packing machine model : Juice and tea beverage processing machinery and production line Automatic juice and tea beverage filling machine and production line Juice and tea beverage filling machinery and production line Automatic aseptic juice filling machine and production line Automatic tea drinks filling line/machine/equipment



4. Filler
1) It is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
2) The filling valve material is SUS304
3) The filling system has liquid level automatic control.
4) Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
5) Bottle is conveying by the wheel in the filling part.
6) The juice or other hot beverage can be backflow by return tank to control filling temperature.

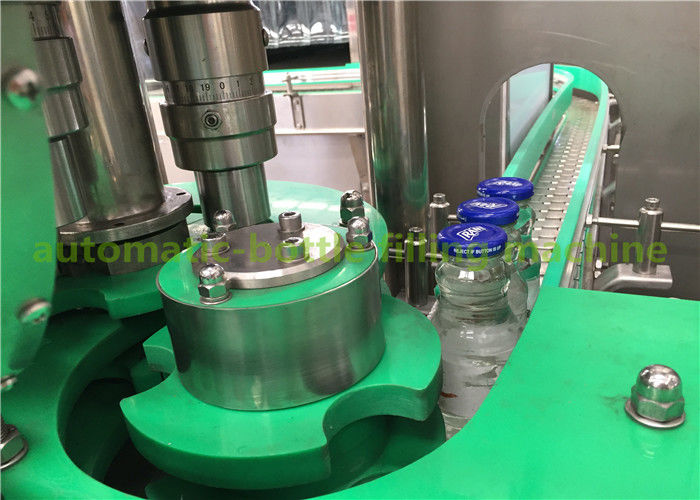

5. Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.
1) Jiayuan import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.



Technique parameter

Model RCGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V



Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V

Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V

Small Glass Bottle Juice Filling And Packing Machine For Hot Liquid 380V
