| Capacity: | 6000BPH(500ml) | Material: | Stainless Steel 304 |
|---|---|---|---|
| Weight: | 3500kg | Filling Type: | Normal Pressure |
| Warranty: | One Year For Free | Control: | PLC+touch Screen |
| Power: | 5.03kw | Manufacturer: | Factory |
| High Light: | mineral water filling machine,automatic water filling machine |
||
Introduction

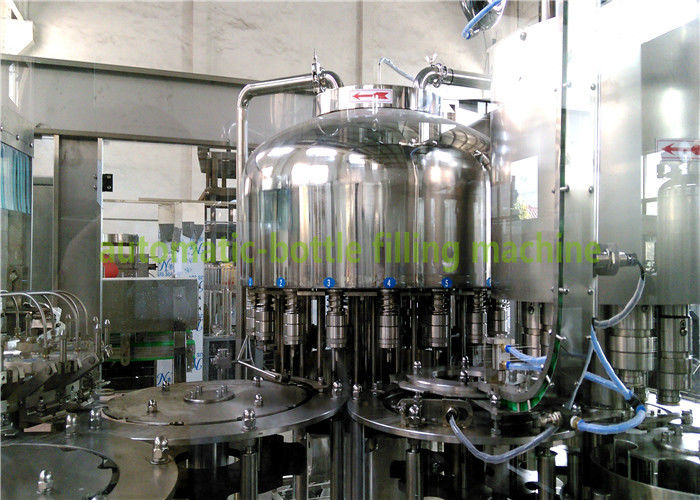

PET bottles washing / filling / capping three-in-one machine is dedicated to the mineral water, purified water and other non-beverage filling the advanced models. The aircraft targeted a transmission bottle neck; Only minimal changes to transform pieces can be applied to a variety of sizes of the format, the greatest extent possible reduction of wear and tear on the bottle, a smooth transfer. Filling approach to micro-gravity vacuum filling, increase the speed of filling, the filling can be precise control level. Health-circulation lines for product quality to provide a reliable guarantee.
Rack: The main structural steel and the surface are 304 stainless steel cladding, and adjustable foot of stainless steel
The part of rotary bottle washing
The number of washing chuck is 18, and the washers are stable and reliable, high-efficiency
The part of Rotary filling
The number of filling valve is 18, and the parts of contacting products are 304 stainless steel materials. Filling liquid tank of both internal and external surfaces are deal with mirror Polish.
The part of rotary capping
The number of capping head is 6, and the level of cap-covered grounds, with no damage to the caps' surface, covered hopper with less automatically send signals to the aircraft shelters, with auto-cover feature.
Power system
Frequency Control, the various sports bodies are pieces of gear transmission, a smooth operation, all-round loser bottles for engineering plastics components, with security agencies.
Control system and operation panel
Electronic sealed boxes, 304 stainless steel, inverter, AC contactor, and switch components
Inverter: MITSUBISHI, Contactor are other electric components are Simense
Technical parameters
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) | Bottle diameter40-80; | |||
| Height | Height:130-280 | (Height):150-320 | ||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) | 0.18 | |||
| Water consumption for Water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 4.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)mm | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 |
3500×2200×2250 |
