Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line

China Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line supplier
Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line supplier Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line supplier Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line supplier Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line supplier Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line supplier

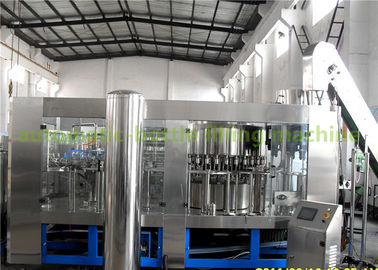

Large Image :  Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Power: 6.57kw Voltage: 380V/50Hz
Weight: 5500kg Dimension(L*W*H): 2750*2180*2200mm
Capacity: 8000-10000BPH(500ml) Warranty: One Year For Free
Processing Type: Water Function: Bottle Washing Filling Capping



Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line



Introduction

The machine adoptting advanced OMR ON programmed controller(PLC) is adapted to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is ideal first- choice equipment of beverage manufacturers.

Main Feature

1. Automatic Bottling 3 in 1 mineral Water Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316.

2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water.

3. Its usual production capacity is in 2000-20,000bph, 0.2-2L PET bottle is available.

4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS.

5. Filling accuracy is more or less than 1%.

6. We can provide bottle blowing machine, bottle filling machine, labeling machine,wrapping packing machine etc. complete plant solution for PET bottle. with optional capacity from 2,000-20,000BPH.



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200


JInyate supply and manufacture the followings machines for you

1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank

2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.

----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)

----PET bottle, Glass bottle, PP bottle and Can

----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.

3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label

4) Printer , Inkjet printer , Laser printer

5) Packing Machine----Shrink film, Cartons packing machine

6) Bottle Blowing Machine--- for making plastic bottle

7) Injection Molding Machine---for your cap and proform.

8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.



Touch screen

Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line

Light checker

Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line

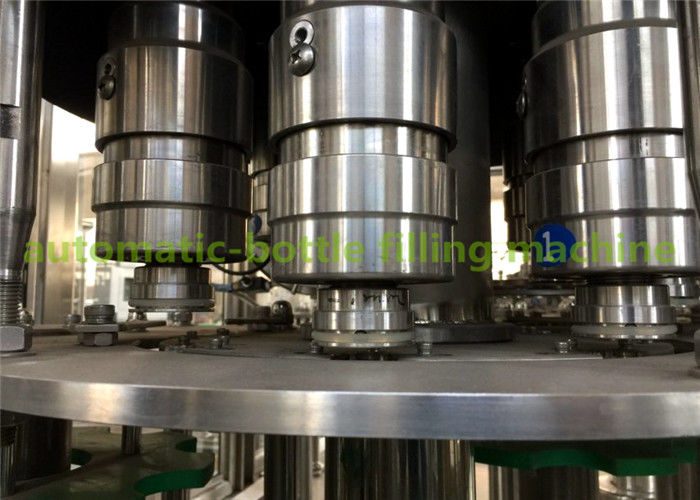

Details image

Automatic Drinking Water Bottle Washing Filling Capping Machine / Bottling Line
