Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine

China Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine supplier
Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine supplier Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine supplier Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine supplier Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine supplier Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine supplier

Large Image :  Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: PET Plastic Bottle Power: 6.57kw
Automatic Grade: Fully-automatic Weight: 5500kg
Dimension(L*W*H): 2750*2180*2200mm Capacity: 8000-10000BPH(500ml)
Warranty: One Year For Free Processing Type: Water



Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine



Products Introduction:

It is suitable for filling water, non-carbonated drink, juice, wine, tea drink and other liquid, working steable with famous electrical components and working very stable.

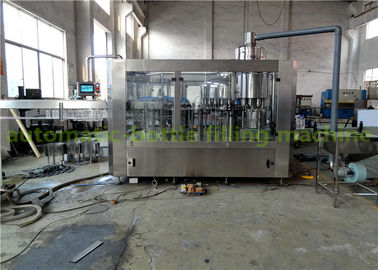

This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester/glass bottled mineral water, purified water, alcohol, tea drink and other non-gas beverage. It can finish all the process such as bottle rinsing, filling and sealing fast and stable. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.



Equipment characteristics:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, anna com bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

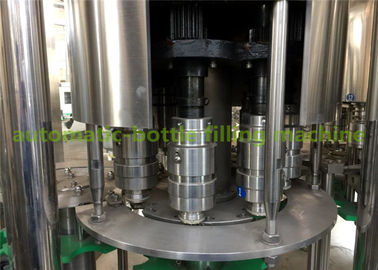

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Super-low star wheel structure can highly improve the strength of the whole machine.

7. Central greasing oil system can grease all bearings easily.

8. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.

9. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200


Cap elevator

Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine

Cap sterilizer

Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine

Electric box

Complete Bottle Water Production Line For Pure / Automatic Filling Water Machine

Welcome To Your Consultation of Our Machines!

We Warmly Welcome To Your Enquiry !

If you have any doubts , please feel free to contact me !
