Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz

China Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz supplier
Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz supplier Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz supplier Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz supplier Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz supplier Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz supplier

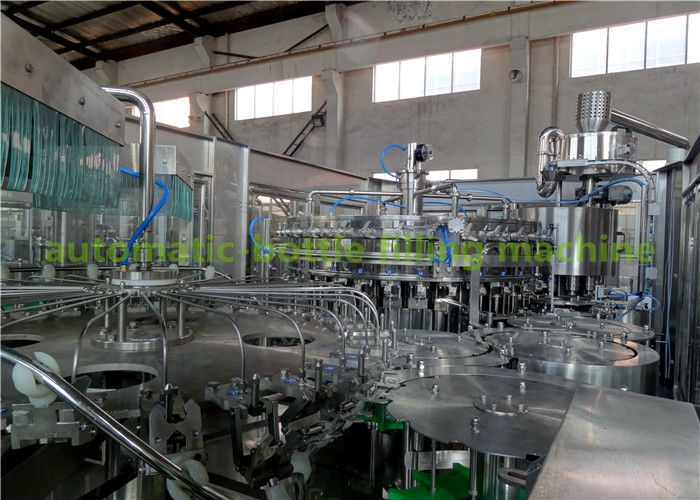

Large Image :  Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Power: 8.07kw Dimension(L*W*H): 3600*2200*2600mm
Weight: 5000kg Voltage: 380V 50Hz
Automatic Grade: Fully-automatic Filling Pressure: Balanced Pressure Filling
Filling Material: Gas Contained Beverage Color: Silver Gray





Sparkling/Soda Water Bottling Machine Carbonated Cola Beverage Filling Machine




Description

Automatic carbonated beverage filling machine is suitable for rinsing,filling,capping three unit. It is widely applied in carbonated drink,soda water,sparkling water,cola etc.The machine runs smoothly,easy to control and size change over,suitable for producing paste products,which has a modern shape,a strong practicability and good value for process.



Features

(1) This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.

(2) It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 2000BPH to 20000BPH.

(3) It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.

(4) Adopting suspensory transmission gear can easily upkeep and be repaired.

(5) The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.

(6) It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.



Technique parameter

Model: DCGF16-12-6 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Production Capacity(500ml)(B/H) 2000-4000 4000-6000 6000-8000 8000-10000 10000-12000
Bottle standard (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Suitable Cap shape

Plastic srew cap



Filling precision

≤±5mm



Filling pressure(Mpa) <0.4
Water pressure of Washing bottle(Mpa) 0.18-0.25
Water consumption for water bottle(kg/h) 1300 2000 2500 3000 3000
Spraying Position 5 5 6 12 12
Dripping Bottle Position 2.5 3.0 3.5 7 7
Gas source Pressure(Mpa) 0.4
Gas consumption(m³/min) 0.3 0.4 0.4 0.5 0.5
Total power(kw) 5.03 5.03 6.57 8.07 8.07
Overall size:(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600
Weight: (kg) 2000 3000 4000 5000

5000



Please kindly send us your requirements

1. bottle volume (Our machines are suitable for 0.2~2.0L Bottle)

2. bottle material (machines for glass bottle and plastic bottle are different)

3. how many bottles (based on 500ml bottle) per hour you want to produce?

4. do you need this water filling machines only or whole water production line ( A to Z)



Image show

Balanced filling valve

Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz



Main motor

Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz



Final product on the conveyor

Cola / Sparkling / Soda Water Carbonated Drink Filling Machine 380V 50Hz
