Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss

China Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss supplier
Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss supplier Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss supplier Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss supplier Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss supplier Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss supplier

Large Image :  Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF40-40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 4000-20000bph Packaging Type: Bottle
Automatic Grade: Fully-automatic Overall Dimension: 6250*3050*2400mm
Weight: 2500kg Filling Material: Juice,tea,non-gas Water,milk
Material: SUS304/316 Function: Bottle Washing Filling Capping



Washing ,Pulp Filling,Juice Filling, Capping 4-In-1 Monobloc Filling











Machine







Brief introduction



The machine is divided into 4 parts:bottle washing, pulp filling, juice filling, capping.



Bottle washing - The clamps hold the bottle neck and turn bottles along the guide rail.



Pulp filling - Clean bottles enter the pulp filling position. The empty bottles will be rised to start to filling



along the rail.



Juice filling - After pulp filling, the bottles enter the juice filling position. Then the grippers hold the bottle



neck and start to fill juice.



Capping - When bottles enter capping position the sensor will send the signal and the caps will be fed by



air cylinder. The capping process will begin.



When tank liquid level is low, the liquid input valve will open and start to input liquid automatically.



The machine is controlled by PLC and touch screen. The machine can be operated and inspected by one



operator. SUS304/316 structure with good surface treatment is anti-corrosion and easy to clean. Igus



sleeve in the machine can make sure the longer self-life and reduce the maintenance cost.





Characteristics


1. using the wind to send directly with bottle feeding thumbwheel connection technology, cancelled the



bottle feeding screw and conveyor chain,Simple bottle type change easily.



2. bottle transfer all adopt the card bottle technology, transform bottle type does not need to adjust



equipment, only need to replace the arc guide plate, associated with the bottle diameter thumbwheel



nylon pieces, etc.



3. the special design of bottle machine, bottle clamp sturdy, high efficiency and flushing effect is good



4. high speed flow gravity filling valve, filling speed, liquid level accurately without fluid loss.



5. the bottle thumbwheel bottle cork base plate adopts spiral method, highly bottle type do not need to



adjust the bottle conveying chain.





Technique parameters:

Model RCGFB24-24-24-8 RCGFB32-32-32-10 RCGFB40-40-40-12
Bottle washing head 24 32 40
Pulp filling head 24 32 40
Juice filling head 24 32 40
Cap screwing head 8 10 12
Rated production capacity 8000BPH 12000BPH 15000BPH
Installed capacity 6.5KW 8.7KW 9.5KW
Overall size 4070*2350*2400mm 5100*2600*2400mm 6250*3050*2400m

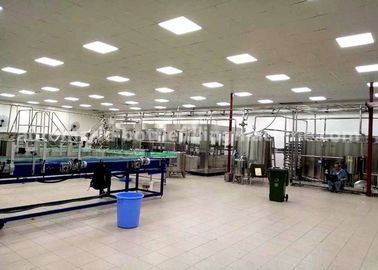

We provide this RCGF40-40-40-12 juice filling line for our Congo's customer,



these pictures are photographed by our engineers when they installed the



machines in Congo



Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss



CIP system



Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss



Automatic bottle blowing machine



Automatic Juice Bottle Filling Machine 4 In 1 Liquid Level Accurately Without Fluid Loss



We also provide below production lines



1. Bottle Minera water/Pure water production line;
2. 5 gallon water production line;
3. Bottle carbonated drink production line;
4. Canning drink production line;
5. Beer filling line;
6. Oil filling line;
7. Tea/Wine filling line.
8. Milk glass bottle filling and packing line
