Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film

China Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film supplier
Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film supplier Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film supplier Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film supplier Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film supplier Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film supplier

Large Image :  Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: WD-150A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping and standard wooden boxes packaging
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Dimension(L*W*H): 5050×3300×2100mm Weight: 1200KG
Power: 20KW Bottle Height: 150mm-350mm
Capacity: 8-15bags/min Automatic Grade: Fully-automatic
Material: Stainless Steel Shrink Film Thickness: 0.03-0.15mm



Automatic Bottle Shrink Packing Wrapping Machine With PE / PVC





Film









1. The description of shrink packing/wrapping machine.



The use of shrink film wrapped in the product or package outside, after heating, the shrink film shrink



wrapped tightly wrapped products or packages to fully show the appearance of goods, improve



product marketing, increase the aesthetic and value. After shrinking machine packaging items can be



sealed, moisture, pollution, and protect the goods from the external impact, has a certain buffer,



especially when packaged fragile goods, to prevent broken containers scattered. In addition, the



product can be demolished, the possibility of theft. Used in light industry, food, beverages, utensils,



hotel supplies, stationery, arts and crafts, hardware tools, daily necessities, chemical products,



electronic-grade transmission, stable and reliable, long life and low noise.



2. The feature of shrink packing/wrapping machine.



1. The main electrical components are imported configuration;
2. equipment, compact, warm-up time is short,save power;
3.

In response to product specifications to adjust the size of the bag before and after the reserved



film width of the elastic, with different shrinkage of the packaging film, to achieve the desired



contraction effect;

4.

The use of high-power cycle of the wind motor, with the inertia through the furnace wall of hot



air, hot air conduction wind, the furnace to produce uniform circulation of the wind, the ideal



contraction effect and greatly reduce heat loss;

5.

Shrinkage furnace conveyor chain using rod-type transmission, the coat has a black high



temperature silicone tube, smooth and not transfer film;

6. The use of German imports conveyor belt, high strength, wear resistance;
7. The heating pipe for the stainless steel heating pipe, the normal life of 5-10 years;
8. Applicable to the packaging of rules or irregular items.



3.  Technical parameter



Model WD-150A
Overall size(L×W×H) 5050×3300×2100mm
Max size of the package(L×W×H) 600×400×350mm
Shrink film material PE,PVC,POF
Shrink film thickness 0.03-0.15mm
Shrink machine power 1 5Kw-30KW
The highest temperature of the heating shrinking pot 160 - 260°adjustable
Max production capacity/min 8-15bags
Equipment power 20Kw
Actual consumption 15Kw/h
Power requirement 380/220V
Fan 1.1Kw 2sets 380V, 65W 4sets 380V
Weight 600Kg

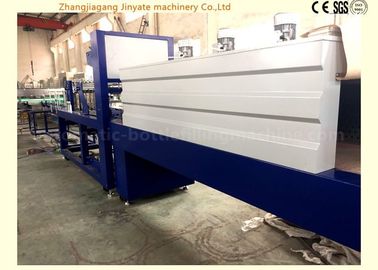

Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film

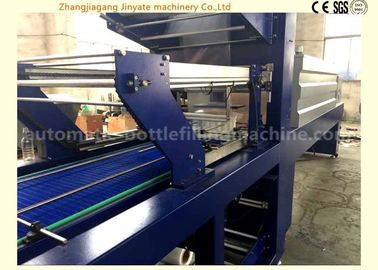

Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film

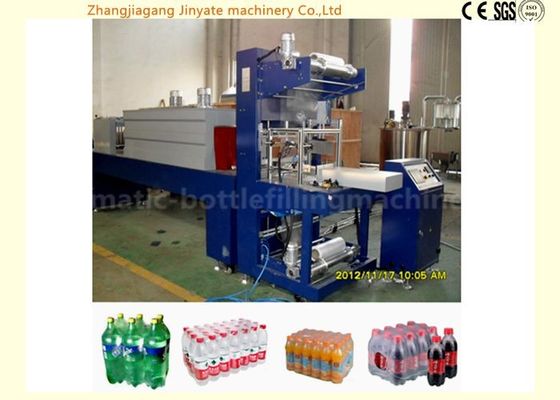

Final product



Automatic End Of Line Packaging Equipment 380 / 220V Stainless Steel With PE PVC Film
