PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG

China PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG supplier
PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG supplier PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG supplier PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG supplier PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG supplier PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG supplier

Large Image :  PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: SLM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping and standard wooden boxes packaging
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 6000B/H Automatic Grade: Fully-automatic
Warranty: One Year For Free Dimension(L*W*H): 2000×900×2450mm
Weight: 600KG Power: 2.5KW
Material: Stainless Steel 304 Applicable Label: PVC,PET,OPS

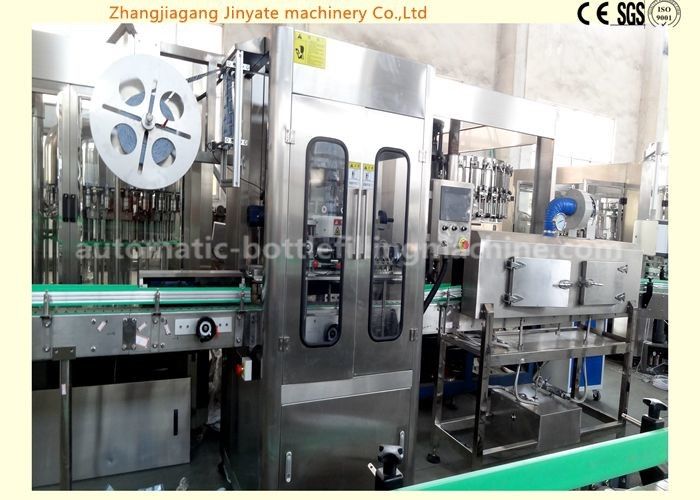

PVC / PET Bottle Shrink Sleeve Wrapping Labeling Machine For





Packing Line 600KG







Characteristics:



1) Full Face Stainless Steel hosts: the whole machine is not waterproof rust;



2) Adjustable cutter head: original cyclotron cut, double-sided blade, long life;



3) Single positioning center guide pillar: Tag channeled more stable;



4) synchronized dividing device: bottle feeding is more stable;



5) Label brush under Group: sets of standard precision is more accurate;



6)label control electric eye shelf: unique combination of tail and electric eye, improve membrane material



cutting accuracy; push-button control box: Operating more humane;



7) formula feeding rack: the freedom to choose rack position.



8) Electrical Appliance Configuration Specification



9) Adopted PLC programmable controller, imported servo motor, servo drives, inverters and sensors, in



addition to using a set of standard positioning module for accurate, fast and stable.



10) applicable set of standard varieties of type:



A variety of bottles, such as: round bottle, square bottle, flat bottle, curved bottle, cup and so on.





Working principle



When push bottle electric eye found the bottle over and that there is a continuous production when



necessary, into the bottle screw into operation push the bottle (screw into the bottle's role is equidistant



from the bottle will not be equidistant from the new initial velocity of bottles, etc.), bottle into the sleeve



labeling system is the core unit, when the sets of standard electric eye sensor to have the bottle over,



immediately transfer the information to the control center PLC, and the PLC were continuously issued



four directives: sent standard, positioning, cutting mark, shot mark, when shooting marked the end of a



process of complete sets of standard bottles, then enter the label finishing, shrink unit.





MAIN PARAMETER



Production capacity 6,000b/h
Machine material stainless steel
Machine size (L×W×H) 2000×900×2450mm
Power supply 3 phases 5 wires/380v/50Hz
Main Power 1.5-2.5KW
Shrink machine power 1 5Kw-30KW
Label length 30mm-200mm
Label thickness 0.03mm-0.05mm (other size can be used, but not suggested.)
Label material PVC/PET/OPS
Container height 150mm-350mm
Container diameter 50mm-104mm (extra big bottles can be designed specially)
Weight 600Kg



PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG



Steam generator



PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG



Bottle dryer for the packing line



PVC / PET Bottle End Of Line Packaging Equipment For Packing Line 600KG
