20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film

China 20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film supplier
20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film supplier 20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film supplier 20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film supplier 20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film supplier 20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film supplier

Large Image :  20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: WD-150A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping and standard wooden boxes packaging
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Warranty: One Year For Free Dimension(L*W*H): 5050×3300×2100mm
Weight: 1200KG Power: 20KW
Material: Stainless Steel 304 Bottle Height: 150mm-350mm
Capacity: 8-15bags/min Condition: New

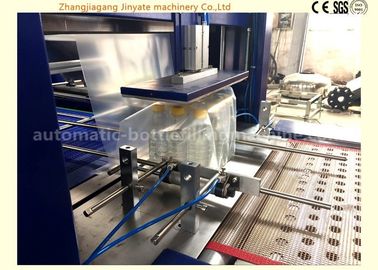

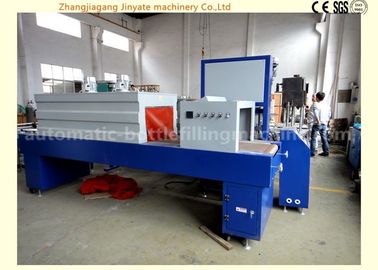

20KW Heat Shrink Packing Machine For Plastic / Glass Bottle / Can





With PE Film









Usage



The machine is used for packing bottled water, drink, or canned drink into a pack with PE film. When the



pack is finished by hand, coming through the machine, it will be pack solid. Don’t need backing board or



paper plate when packing; it will save the cost of packing. It is widely used in production of mineral water,



pure water, soft drink, beer, juice and so on.



Capacity: 8-12 bags per minute



Features



1) Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat



distribution with beautiful and secure shrinkage effect.



2) 3 layers of heat insulation treatment with good insulating property, quick temperature rise and energy



saving.



3) The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength



status that is conveniently stored and transported.



4) It is easy to change the packaging combination and bottle type to integrate the multi-function into one



machine.



5) In response to product specifications to adjust the size of the bag before and after the reserved film



width of the elastic, with different shrinkage of the packaging film, to achieve the desired contraction



effect;



6) The use of high-power cycle of the wind motor, with the inertia through the furnace wall of hot air, hot



air conduction wind, the furnace to produce uniform circulation of the wind, the ideal contraction effect



and greatly reduce heat loss;



7) Shrinkage furnace conveyor chain using rod-type transmission, the coat has a black high temperature



silicone tube, smooth and not transfer film;



8) The heating pipe for the stainless steel heating pipe, the normal life of 5-10 years;



9) Applicable to the packaging of rules or irregular items.



10) The use of German imports conveyor belt, high strength, wear resistance;





MAIN PARAMETER



Model WD-150A
Overall size(L×W×H) 5050×3300×2100mm
Max size of the package(L×W×H) 600×400×350mm
Shrink film material PE,PVC,POF
Shrink film thickness 0.03-0.15mm
Shrink machine power 1 5Kw-30KW
The highest temperature of the heating shrinking pot 160 - 260°adjustable
Max production capacity/min 8-15bags
Equipment power 20Kw
Actual consumption 15Kw/h
Power requirement 380/220V
Fan 1.1Kw 2sets 380V, 65W 4sets 380V
Weight 600Kg



20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film



20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film



20KW Heat Shrink Packing Machine Stainless Steel 304 For Plastic / Glass Bottle With PE Film
