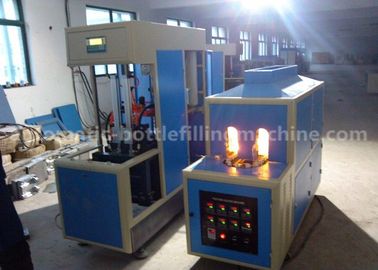

Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force

China Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force supplier
Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force supplier Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force supplier Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force supplier Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force supplier Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force supplier

Large Image :  Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: HY-B-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Bottle Blowing Machine Automatic Grade: Semi-automatic
Packaging Material: Paper, Plastic, Wood Bottle Volume: 50-2000ml
Working Pressure: 0.8-1.0Mpa Blowing Pressure: 2.0-3.0Mpa
Power: 1kw Voltage: 220V



50-2000ml Semi-Auto Plastic / Pet Bottle Making Machine / Blowing





Machine





Specification:


HY-B-I semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and



bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle



oil bottle cosmetics, wide-mouth bottle etc.


1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to



heat the perform ,the perform rotated and heated equally.



2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the



different requirements for the action and blow .It can provide sufficient and steady high pressure for



blowing large irregular shaped bottles.



3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the



machine.



4. The machine can be operated in the step-by-step mode and the semi-auto mode.



5. The machine is small with low investment, easy and safe to operate .



6. Strong clamping force with high pressure and double crank links to lock the mould.



7. Two ways of operating: Automatic and manual.


8. Safereliable and unique design of the position of valve to make the pneumatic diagram in the



machine easier to understand.


9. Low costhigh efficiency easy operation and maintenance etc, profited from the fully automatic



technological process.




Technical parameter



Item Unit Details
Dimension mm 1500*600*1750mm
Bottle volume  ml 50-2000
Bottle Neck Diameter  mm 18-40
Body Diameter (max) mm 125
Body Height( max) mm 420
Number of Cavities mold 2
Production output pcs/h 800-1000BPH
Clamping force T 5.7(56KN)
Mold thickness mm 200(max)
Mold width mm 360x390
Space between Tie-bars mm 120-220
Diameter of Tie-bars mm 63
Scope of Tie-bars mm 405
Mold stroke mm 160
Stretching stroke (max) mm 420
Working pressure Mpa 0.8-1.0Mpa
Blowing pressure Mpa 2.0-3.0Mpa
Voltage/Power V/KW 220V/1KW
Dimension mm 1870*630*1450mm
Weight kg 260
Voltage/Power V/KW 380V/14KW





Bottle mold



Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force

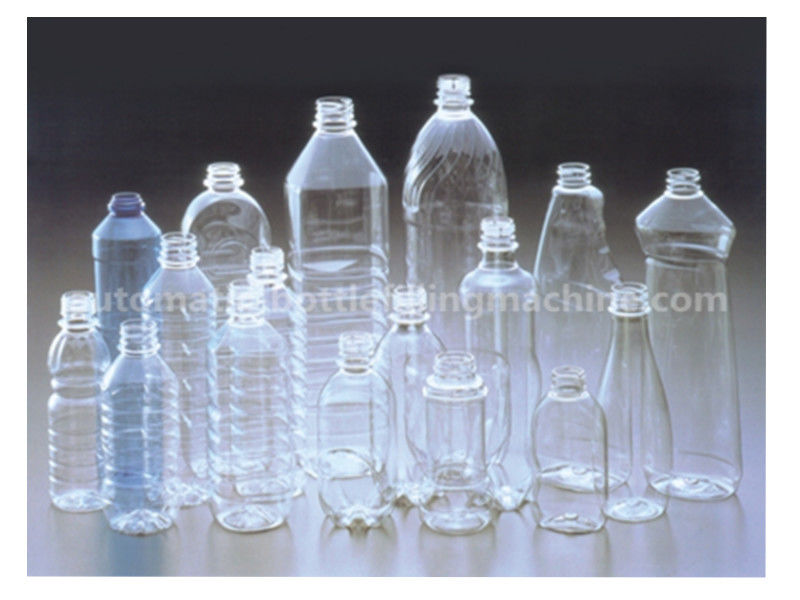

Bottle samples



Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force



High Pressure Air Compressor Unit



Semi Auto Plastic Bottle Blowing Machine 50 - 2000ml Strong Clamping Force



Air compressor 1.2m³/min
Volume 1.2m³
Pressure 30Mpa
Speed 620r/min
Power 15kw
Tank volume 0.15m³
Overall dimension 2000mm*1100mm*1600mm
Weight 620kg
