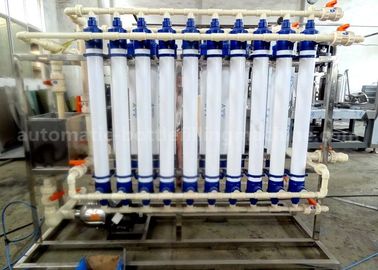

Large Image :  Ultra Filtration Water Treatment Machine , Water Purification Systems For Filling Mineral Water

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: Two-stage reverse osmosis

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Mineral Water Treatment Plant Filtering System: Quartz Sand , Carbon, Sodium Ion,precision
Processing Capacity: 10m³/h After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 220V/380V Warranty: 1 Year
Usage: Mineral / Drinking Water Process Material: SS304



Ultra Filtration Mineral Water Treatment Machine For Filling Mineral





Water



Introduction

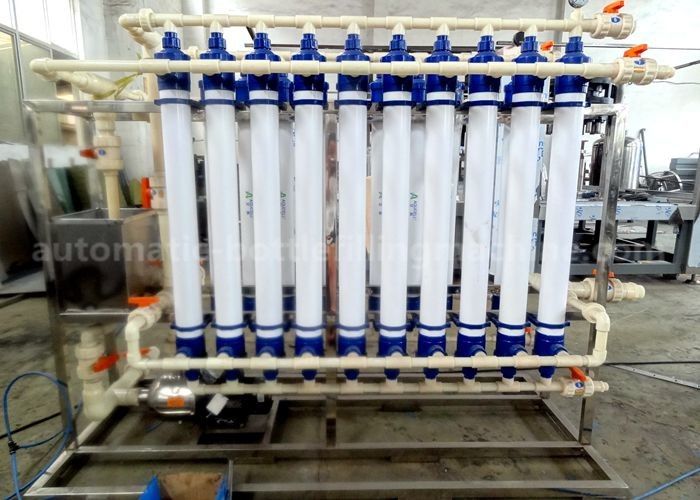

Hollow Ultrafiltration



Normally the ultrafiltration is used to produce mineral water and spring water. Driven by pressure,it is a



process of discharging impurity through different diameter hole on the ultrafiltration membrane. At



present, the hollow-fiber type of polysulfones are widely used in water treatment industry.





Feature



1. We can design and produce the water treatment system according to customer’s raw water quality



report or customer requirement with World health organization living instant-drinking water standard.

2. All the valves, pipeline will be with stainless steel SUS304 or SUS316L, with compact structure.

3. All the machine will be PLC controlled, can be operated automatically, and also have installed with



conductivity meter monitor, pressure gauge and flow meter. All the parameter in the machine can be



monitored easily.

4. With the high pressure pump, the raw water will be pumped into the quartz sand filter, passing through



the quartz sand in the filter, any particle more than 20 um will be filtered, such as sediment, manganese,



rust, colloid material, mechanical impurities, suspended solid,etc.

5. And then the water will pass through the active carbon filter, which will adsorb the smell and chemical



residualin the water;

6. With the third step of sodium filter, the heavy metal content in the water will be reduced, which will result



the water more health for drinking;

7. With the above three pre-treatment, the water is more clean than used to.

But still not arrive the best condition. During the whole process, one of the major process is hollow



ultrafiltration with special membrane, to protect the membrane in the hollow ultrafiltration more better, we



have to add the precise filter, which is used for cleaning the final big volume substance in water.

8. After the above 4 treatment, the water will be pumped into hollow ultrafiltration device, and then about



70% of the raw water will come to be mineral  water, others will be waste water and then drain out of the



water treatment system.

9.The membrane in the hollow ultrafiltration device will be with 0.001 micron pore size, after this process,



99.2% of the heavy metal ion, cancerogen, etc in water will be absolutely removed.



Function



Machine Usage
Quartz sand filter To remove the particulate solids from waste water
Active carbon filter To remove the chlrine and the smell of water
Sodium filter To soften the water, and exchange the calcium ion & magnesium ion
Precise filter

To clear the granules bigger than 5 µm and also protect the reverse



osmosis device membrane

Hollow Ultrafiltration device Used to desalt and sterilizer the water, used for distill water
Ozone sterilizer and UV sterilizer Special for waste water disinfection







Purifier process



Raw water tank→Raw water pump→Quartz sand filter→Active carbon filter→Sodium filter→Precise



filter→Hollow ultrafiltration device→Ozone sterilizer→UV sterilizer→Mineral water tank





Ultra Filtration Water Treatment Machine , Water Purification Systems For Filling Mineral Water



Ultra Filtration Water Treatment Machine , Water Purification Systems For Filling Mineral Water



Ultra Filtration Water Treatment Machine , Water Purification Systems For Filling Mineral Water
