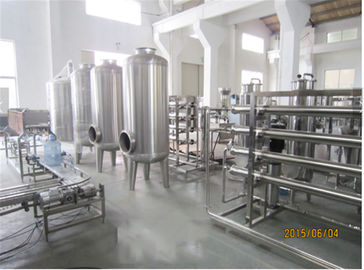

20000L/H Drinking Water Purification Machine Multimedia Filter

20000L/H Drinking Water Purification Machine Multimedia  Filter
20000L/H Drinking Water Purification Machine Multimedia  Filter

Large Image :  20000L/H Drinking Water Purification Machine Multimedia Filter

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: One-stage,Two-stage
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping,standard boxes packaging
Delivery Time: 30 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Automatic Grade: Fully Automatic Capacity: 20T Per Hour
Material: Stainless Steel 304 Driven Type: Driven Type
Warranty: One Year For Free After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Silver Gray Function: Removing Impurities From The Water
High Light:

20000L/H Drinking Water Purification Machine

,

multimedia Drinking Water Purification Machine

,

20000L/H ro pure water filter

Electric 20000L / H Drinking Water Purification Machine / Plant For Industrial



Flow chart

Raw water tank--raw water pump--multi--medium filter--active carbon filter--water softner (Sodium Ion Exchanger)--precision filter--RO mainframe(including chemical cleaning device)--ozone generator--finished product water tank



Introduction

Pretreatment of this machine has adopted stainles steel multimedia filter, active carbon filter to remove large size impurities and floating material effectively. Water input index of RO films is improved so that extraordinarysmell and remaining chlorine of the raw water can be effectively removed, the taste quality of the water is therefore improved. The main machine has applies high effvientlow pressure compound films fron U.S.A., desalt rate of single film may reach as high as 99%. Over high or over low pressure protection facilities imported from Korea have been applied so that the problem rate of the facility is almost zero. High class standing type stainless pump form LOWALA, U.S.A. has been applied The medical material imput system from Midunlo, U.S.A. has been apply, the standard of supplg water fully reach the national standard for pure water.



Specification

Model
Salt Rejection
Capacity
Intet Tube Dia(mm)
Product Tube Dia(mm)
Dimensions
Dia(mm)
Weight(kg)
Dia(mm)
RO-1000
>95%
1000
40
32
3600×1000×1700
350
RO-2000
2000
40
32
3600×1000×1700
350
RO-3000
3000
40
32
3600×1000×1700
400
RO-4000
4000
40
32
3600×1000×1700
420
RO-5000
5000
50
40
3600×1000×1700
450
RO-8000
8000
50
40
3600×1400×1700
500
RO-10000
10000
65
50
3600×1400×1750
550
RO-15000
15000
65
50
5400×1400×2000
1200
RO-20000
20000
80
65
5400×1600×2000
1450
RO-25000
25000
80
65
5400×1600×2000
1800
RO-30000
30000
80
65
5400×1650×2000
2500
RO-35000
35000
100
80
5400×1800×2000
3000
RO-40000
40000
100
80
7100×1800×2100
3500
