5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle

China 5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle supplier
5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle supplier 5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle supplier 5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle supplier 5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle supplier 5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle supplier

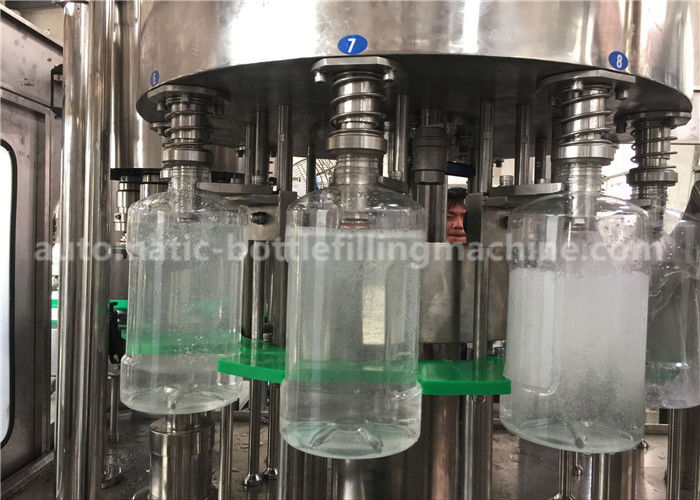

Large Image :  5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF9-9-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Type: PET Plastic Bottle Warranty: One Year For Free
Function: Bottle Washing Filling Capping Weight: 4500kg
Overall Dimension(L*W*H): 3100*2300*2800mm Export Markets: Global
Control: PLC System Driven Type: Electric





5Liter Drinking Pure Water Filling / Bottling Machine With Plastic





Bottle





Introduction



This CGF9-9-4 Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled



mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.



Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce



the materials and Outsiders touch time, improve the sanitary conditions, production capacity and



economic efficiency





Detailed information



1. 5L water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.



2. All the water filling machine part which contact with liquid is high quality stainless steel 304. The relative



fittings are from international famous brand.



3. This machine is comprised of rinsing, filling and capping system.

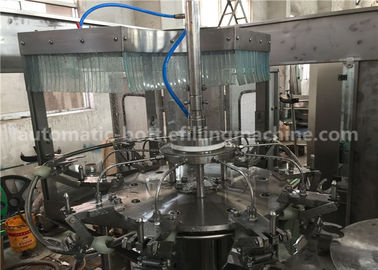

Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying



make bottles be cleaned completely.

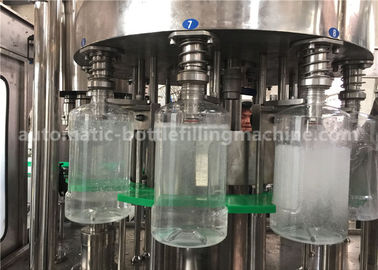

Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid



leakage after filling and also control liquid level accurately.



Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping



performance the best.



4. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck



size is the same, only the output star wheel needs to be changed if bottles are different.



5. It improves the efficiency a lot. We are the water filling machine manufacturers in China.





Technical parameter



Model
CGF9-9-4
CGF12-12-4
CGF16-16-4
CGF20-20-6
Heads of washing,filling,capping
9-9-4
12-12-4
16-16-4
20-20-6
Production capacity(bottle/hour)
500-1000
1000-1200
1500-2000
2500-3000
Suitable bottle diameter(mm)
Φ=110-220 H=170-380(2000-6000ml)
Spraying pressure(kg/ m2)
2-3
Motor power(kw)
(Main motor)2.2kw
(Main motor)2.2kw
(Main motor)3kw
(Main motor)5.5kw
Overall dimension(mm)
2400x1650x2500
2600x1920x2550
3100x2300x2800
3800x2800x2900
Weight(kg)
2500
3500
4500
6500



Conveyor



5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle



Overall look



5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle



5 Liter Bottled Water Making Machine PLC System For PET Plastic Bottle







If you want to see the video of how is it working,please leave message to



me.
